APN WATERPROOF FLEXIBEL CONDUIT-APN - FLEXIBLE METAL CONDUIT

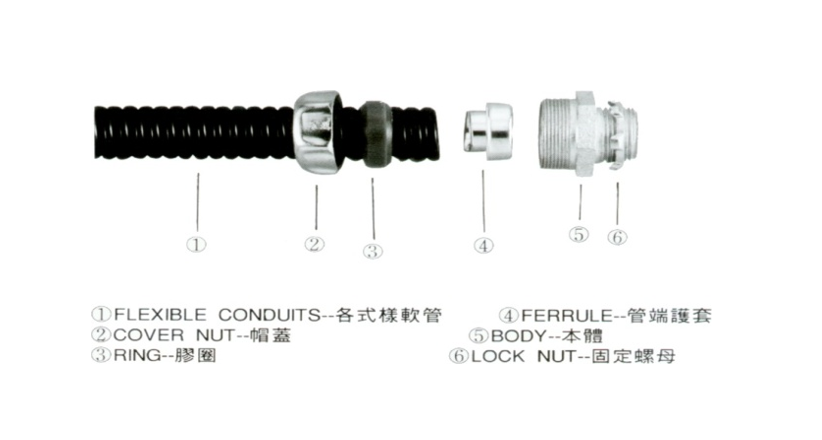

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

(材質不銹鋼;可選購訂製品)

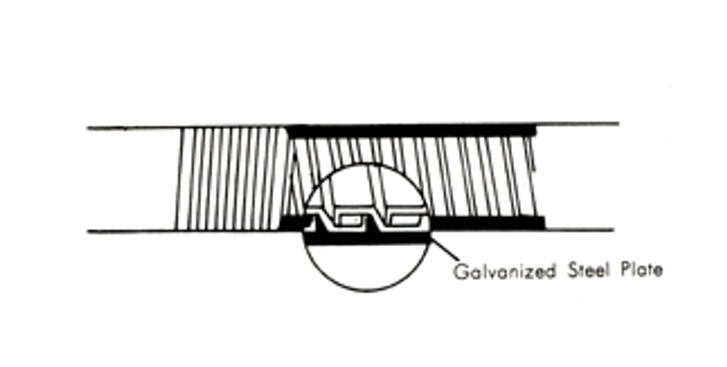

The APN is made of Galvanized steel plate covered with PVC. anti-corrosion、 bendable、 anti-heat features are very excellent.

單位:±3mm


 型號

CAT NO

公稱管徑

 CONDUIT SIZE

內徑 (mm)

INNER DIAMETER

外徑 (mm)

OUTER

DIAMETER

彎曲半徑 (mm)

BENDING RADIUS

每卷長度 (m)

LENGHT PER ROLL

APN16

PF 1/2    (16)

16.0

20.8

55

50

APN22

PF 3/4    (22)

20.3

25.5

60

50

APN28

PF 1     (28)

26.2

32.4

80

50

APN36

PF 11/4   (36)

32.5

39.0

100

25

APN42

PF 11/2   (42)

39.3

46.2

130

25

APN54

PF 2     (54)

51.3

59.5

250

15

APN70

PF 21/2  (70)

62.9

72.2

360

10

APN82

PF 3     (82)

77.5

88.9

680

10

APN104

PF 4     (104)

101.6

113.9

990

10

(尺寸表僅供參考;實際尺寸以實體為主)
