REDUCING COUPLINGS - REC TYPE - CONDUIT FITTINGS
Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.
單位:±3mm
|
規格 |
鑄鐵合金&鋼 |
表面處理 |
不銹鋼 Stainless Steel (SUS304,316) (訂製品) |
鋁合金 (訂製品) |

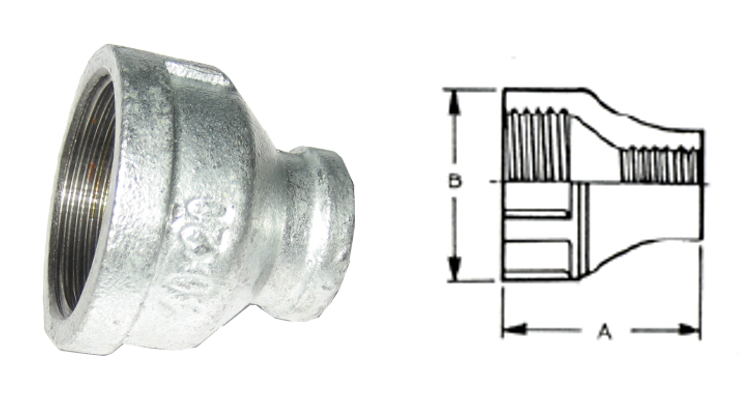

尺寸 Dimensions |
|
|
型號 |
型號 |
型號 |
A |
B |
||
|
3/4-1/2 |
REC 2216 |
電鍍鋅 Dacrotizing |
REC 2216-S |
REC 2216-A |
47 |
40 |
|
1-1/2 |
REC 2816 |
REC 2816-S |
REC 2816-A |
52 |
53 |
|
|
1-3/4 |
REC 2822 |
REC 2822-S |
REC 2822-A |
52 |
53 |
|
|
1 1/4-1/2 |
REC 3616 |
REC 3616-S |
REC 3616-A |
53 |
58 |
|
|
1 1/4-3/4 |
REC 3622 |
REC 3622-S |
REC 3622-A |
53 |
58 |
|
|
1 1/4-1 |
REC 3628 |
REC 3628-S |
REC 3628-A |
53 |
58 |
|
|
1 1/2-1/2 |
REC 4216 |
REC 4216-S |
REC 4216-A |
59 |
70 |
|
|
1 1/2-3/4 |
REC 4222 |
REC 4222-S |
REC 4222-A |
59 |
70 |
|
|
1 1/2-1 |
REC 4228 |
REC 4228-S |
REC 4228-A |
59 |
70 |
|
|
1 1/2-1 1/4 |
REC 4236 |
REC 4236-S |
REC 4236-A |
59 |
70 |
|
|
2 -1/2 |
REC 5416 |
REC 5416-S |
REC 5416-A |
64 |
76 |
|
|
2-3/4 |
REC 5422 |
REC 5422-S |
REC 5422-A |
64 |
76 |
|
|
2-1 |
REC 5428 |
REC 5428-S |
REC 5428-A |
67 |
76 |
|
|
2-1 1/4 |
REC 5436 |
REC 5436-S |
REC 5436-A |
67 |
76 |
|
|
2-1 1/2 |
REC 5442 |
REC 5442-S |
REC 5442-A |
69 |
76 |
|
|
2 1/2-1/2 |
REC 7016 |
REC 7016-S |
REC 7016-A |
75 |
95 |
|
|
2 1/2-3/4 |
REC 7022 |
REC 7022-S |
REC 7022-A |
75 |
95 |
|
|
2 1/2-1 |
REC 7028 |
REC 7028-S |
REC 7028-A |
78 |
95 |
|
|
21/2–1 1/4 |
REC 7036 |
REC 7036-S |
REC 7036-A |
78 |
95 |
|
|
2 1/2–1 1/2 |
REC 7042 |
REC 7042-S |
REC 7042-A |
80 |
95 |
|
|
2 1/2-2 |
REC 7054 |
REC 7054-S |
REC 7054-A |
80 |
95 |
|
|
3-1/2 |
REC 8216 |
REC 8216-S |
REC 8216-A |
80 |
115 |
|
|
3-3/4 |
REC 8222 |
REC 8222-S |
REC 8222-A |
80 |
115 |
|
|
3-1 |
REC 8228 |
REC 8228-S |
REC 8228-A |
80 |
115 |
|
|
3-1 1/4 |
REC 8236 |
REC 8236-S |
REC 8236-A |
80 |
115 |
|
|
3-1 1/2 |
REC 8242 |
REC 8242-S |
REC 8242-A |
80 |
115 |
|
|
3-2 |
REC 8254 |
REC 8254-S |
REC 8254-A |
85 |
115 |
|
|
3-2 1/2 |
REC 8270 |
REC 8270-S |
REC 8270-A |
85 |
115 |
|
|
4-1/2 |
REC 10416 |
REC 10416-S |
REC 10416-A |
85 |
140 |
|
|
4-3/4 |
REC 10422 |
REC 10422-S |
REC 10422-A |
85 |
140 |
|
|
4-1 |
REC 10428 |
REC 10428-S |
REC 10428-A |
85 |
140 |
|
|
4-1 1/4 |
REC 10436 |
REC 10436-S |
REC 10436-A |
85 |
140 |
|
|
4-1 1/2 |
REC 10442 |
REC 10442-S |
REC 10442-A |
89 |
140 |
|
|
4-2 |
REC 10454 |
REC 10454-S |
REC 10454-A |
89 |
140 |
|
|
4-2 1/2 |
REC 10470 |
REC 10470-S |
REC 10470-A |
89 |
140 |
|
|
4-3 |
REC 10482 |
REC 10482-S |
REC 10482-A |
90 |
140 |
|
