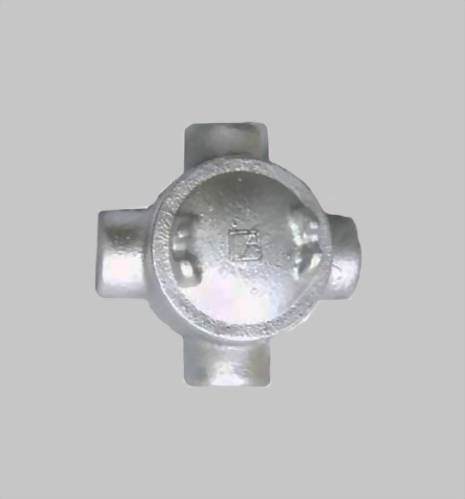

GX TYPE - EXPLOSION PROOF ROUND OUTLET BOXES

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Model : GX16,GX22,GX28,GX36,GX42,GX54

Q'ty :

Description

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.

GX TYPE - EXPLOSION PROOF ROUND OUTLET BOXES

TS Certificated

型式檢定合格證號: (ETC)2020第07-00025U號

Shenfang Conduit fitting has hub size from 1/2” to 4”. It is suitable for rigid conduit and Conduit outlet box.Our conduit fitting can apply for construction site or MRT and Power plant project.

單位:±3mm

規格 Size (IN)	鑄鐵合金 Cast Iron	球墨鑄鐵 Ductile Iron	表面處理 Standard Finishes	鑄不銹鋼CF8 Stainless Steel (SUS304,316)	鋁合金 Aluminum Alloy	尺寸 Dimensions
規格 Size (IN)	型號 Cat. No.	型號 Cat. No.	表面處理 Standard Finishes	型號 Cat. No.	型號 Cat. No.	A	B	C	D
1/2	GX-16	GX-16D	電鍍鋅 Zinc Electroplate 熱浸鋅 H.D. Galvanize	GX -16S / GX -16S6	GX -16A	90	57	18	22
3/4	GX-22	GX- 22D		GX -22S / GX- 22S6	GX -22A	90	60	18	22
1	GX-28	GX -28D		GX- 28S / GX- 28S6	GX- 28A	90	67	23	23
1 1/4	GX-36	GX -36D		GX -36S / GX- 36S6	GX -36A	108	73	30	23
1 1/2	GX-42	GX-42D		GX -42S /GX -42S6	GX -42A	145	106	32	30
2	GX-54	GX -54D		GX -54S / GX- 54S6	GX-54A	145	106	35	30
