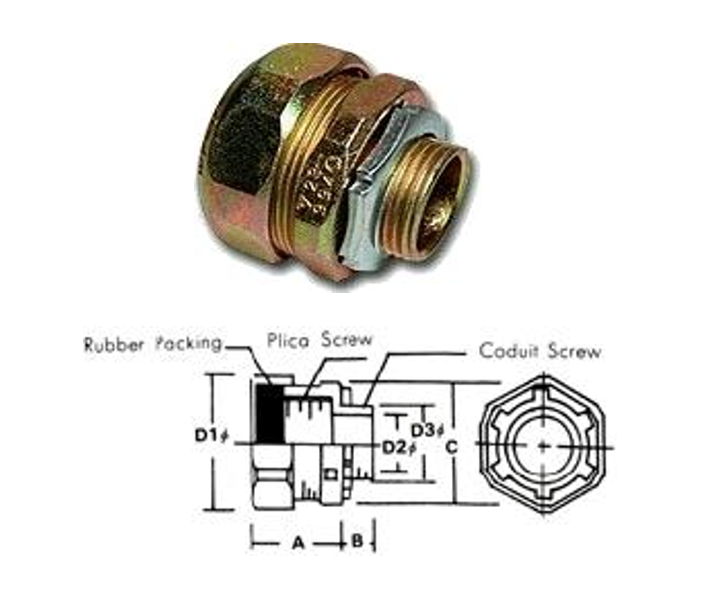

WATERPROOF UNION BOX CONNECTOR FOR PLICA-WBG - 軟管用接頭
單位:±3mm
|
型號 CAT NO |
公稱管徑 CONDUIT SIZE |
A |
B |
C |
D1φ |
D2φ |
D3φ |
|
WBG-17# |
PF 1/2 (16) |
28 |
15.2 |
32 |
35 |
14.5 |
20.3 |
|
WBG-24# |
PF 3/4 (22) |
31 |
16.5 |
38 |
41 |
20.0 |
25.7 |
|
WBG-30# |
PF 1 (28) |
34 |
17.2 |
46 |
50 |
27.0 |
32.7 |
|
WBG-38# |
PF 1 1/4 (36) |
38 |
18.1 |
54 |
58 |
34.5 |
41.2 |
|
WBG-50# |
PF 1 1/2 (42) |
39 |
20.0 |
67 |
71 |
39.5 |
47.4 |
|
WBG-63# |
PF 2 (54) |
46 |
20.8 |
84 |
87 |
51.0 |
59.0 |
|
WBG-76# |
PF 2 1/2 (70) |
50 |
23.0 |
198 |
102 |
66.0 |
74.9 |
|
WBG-83# |
PF 3 (82) |
50 |
27.6 |
104 |
108 |
86.0 |
87.0 |
|
WBG-104# |
PF 4 (104) |
64 |
30.2 |
137 |
137 |
103.5 |
112.5 |
