HAZARDOUS LOCATION EXPLOSION CLASS d2G4 CONDUIT SETS - FLEXIBLE METAL CONDUIT

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.

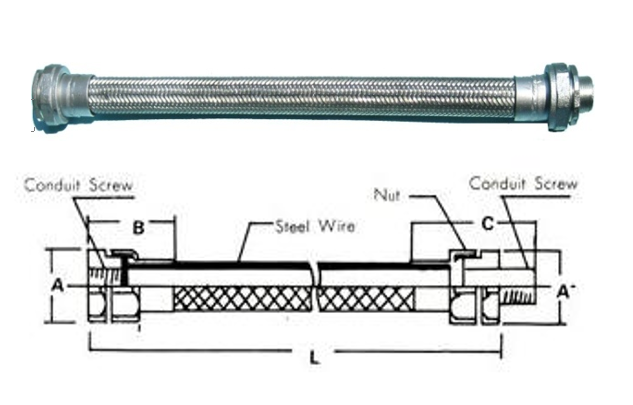

Through special process, the EXH is setting very hard with anti-explosion Union Coupling at both ends of  stainless -stell conduit, so the EXH is expolsion proof, used especially。 For hazardous locations(oil、gas…etc)

Shenfang Conduit fitting has hub size from1/2” to 4”. It is suitable for rigid conduit and Conduit outlet box.Our conduit fitting can apply for construction site or MRT and Power plant project.



單位:±3mm

型號

CAT NO

公稱管徑

CONDUIT SIZE

L

(mm)

A

(mm)

B

(mm)

C

(mm)

EXH-17#×500L

PF 1/2 (16)

500

42

60

70

EXH-24#×500L

PF 3/4 (22)

500

48

68

81

EXH-30#×500L

PF 1 (28)

500

56

73

89

EXH-38#×500L

PF 1 1/4 (36)

500

67

76

96

EXH-50#×500L

PF 1 1/2 (42)

500

81

85

106

EXH-63#×500L

PF 2 (54)

500

90

92

116

EXH-76#×500L

PF 2 1/2 (70)

500

110

108

134

EXH-83#×500L

PF 3 (82)

500

125

117

148

EXH-104#×500L

PF 4 (104)

500

162

120

160

EXH-17#×1000L

PF 1/2 (16)

1000

42

60

70

EXH-24#×1000L

PF 3/4 (22)

1000

48

68

81

EXH-30#×1000L

PF 1 (28)

1000

56

73

89

EXH-38#×1000L

PF 1 1/4 (36)

1000

67

76

96

EXH-50#×1000L

PF 1 1/2 (42)

1000

81

85

106

EXH-63#×1000L

PF 2 (54)

1000

90

92

116

EXH-76#×500L

PF 2 1/2 (70)

1000

110

108

134

EXH-83#×500L

PF 3 (82)

1000

125

117

148

EXH-104#×500L

PF 4 (104)

1000

162

120

160

(尺寸表僅供參考;實際尺寸以實體為主)
