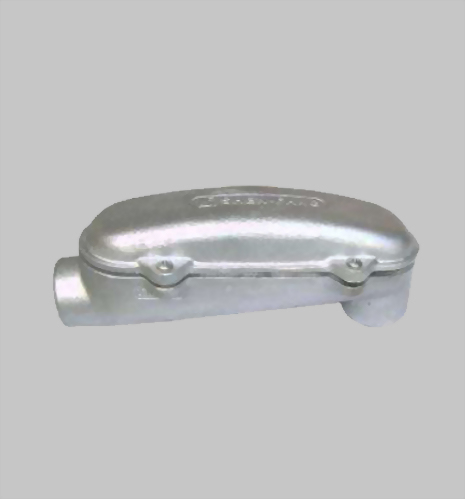

LBD TYPE - CONDUIT OUTLET BOXES

We offer threaded and set-screw type conduit bodies for pulling, splicing and maintaining wires installed in rigid conduit . Conduit bodies, covers and gaskets can be ordered separately or as complete assemblies ready for installation.

A conduit body can be used to provide pulling access in a run of conduit, to allow more bends to be made in a particular section of conduit, to conserve space where a full size bend radius would be impractical or impossible, or to split a conduit path into multiple directions. Conductors may not be spliced inside a conduit body, unless it is specifically listed for such use.



單位:±3mm

規格
Size
(IN)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理
Standard
Finishes

鑄不銹鋼CF8 Stainless Steel

(SUS304,316)

鋁合金
Aluminum Alloy

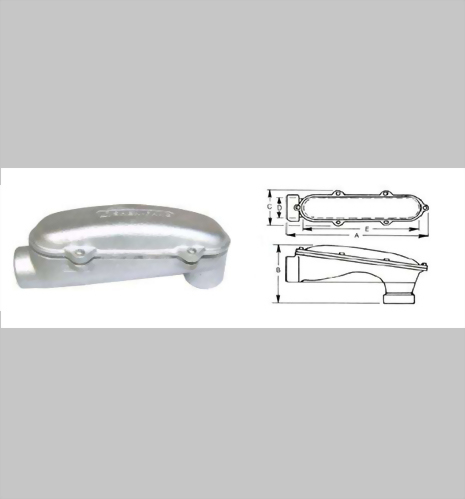

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

B

C

D

E

1/2

LBD 16

LBD 16-M

電鍍鋅
Zinc
Electroplate

熱浸鋅
H.D.
Galvanize

達克銹

Dacrotizing

LBD 16-S

LBD16-A

127

60

34

23

88

3/4

LBD 22

LBD 22-M

LBD 22-S

LBD22-A

153

67

40

32

110

1

LBD 28

LBD 28-M

LBD 28-S

LBD28-A

170

80

46

31

117

1 1/4

LBD 36

LBD 36-M

LBD 36-S

LBD36-A

220

125

90

46

183

1 1/2

LBD 42

LBD 42-M

LBD 42-S

LBD42-A

330

140

118

45

297

2

LBD 54

LBD 54-M

LBD 54-S

LBD54-A

322

150

111

56

283

2 1/2

LBD 70

LBD 70-M

LBD 70-S

LBD70-A

431

174

154

69

396

3

LBD 82

LBD 82-M

LBD 82-S

LBD82-A

505

240

147

84

468

4

LBD104

LBD104-M

LBD104-S

LBD104-A

710

310

185

110

680

(尺寸表僅供參考;實際尺寸以實體為主)
