BHC TYPE - CONDUIT FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.


※訂製品:SUS304、316

單位:±3mm

規格
Size
(IN)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理
Standard
Finishes

鋁合金
Aluminum Alloy

(訂製品)

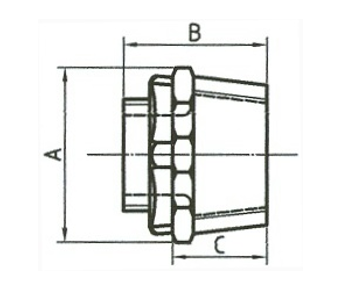

尺寸

Dimensions

黃銅

Brass

 (訂製品)

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

B

C

型號
Cat. No.

A

B

C

1/2

BHC 16

BHC 16-M

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

BHC 16-A

35

32

18

BHC 16-B

35

32

18

3/4

BHC 22

BHC 22-M

BHC 22-A

42

37

20

BHC 22-B

41

38

22

1

BHC 28

BHC 28-M

BHC 28-A

50

41

24

BHC 28-B

47

44

25

1 1/4

BHC 36

BHC 36-M

BHC 36-A

63

41

24

BHC 36-B

63

41

24

1 1/2

BHC 42

BHC 42-M

BHC 42-A

72

52

24

BHC 42-B

65

47

25

2

BHC 54

BHC 54-M

BHC 54-A

89

55

35

BHC 54-B

76

47

25

2 1/2

BHC 70

BHC 70-M

BHC 70-A

108

69

45

BHC 70-B

98

56

32

3

BHC 82

BHC 82-M

BHC 82-A

120

70

46

BHC 82-B

112

65

36

4

 BHC 104

 BHC 104-M

 BHC 104-A

144

75

46

BHC 104-B

144

75

45

(尺寸表僅供參考;實際尺寸以實體為主)
