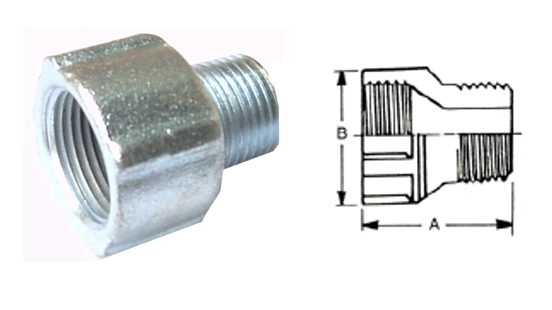

ENLARGERS - ME TYPE - CONDUIT FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.



※特殊各國牙規如PG牙、MM牙皆可訂製

單位:±3mm

規格
Size
(IN)

鑄鐵合金&
Feraloy Iron & Steel

表面處理
Standard
Finishes

不銹鋼

Stainless Steel

(SUS304,316)

(訂製品)

鋁合金
Aluminum Alloy

(訂製品)

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

B

3/4 -1/2

ME 1622

電鍍鋅
Zinc
Electroplate

熱浸鋅
H.D.
Galvanize

達克銹

Dacrotizing

ME 1622-S

ME 1622-A

43

39

1 - 1/2

ME 1628

ME 1628-S

ME 1628-A

50

45

1 -3/4

ME 2228

ME 2228-S

ME 2228-A

50

47

1 1/4-1/2

ME 1636

ME 1636-S

ME 1636-A

54

58

1 1/4-3/4

ME 2236

ME 2236-S

ME 2236-A

54

58

1 1/4-1

ME 2836

ME 2836-S

ME 2836-A

60

59

1 1/2-1/2

ME 1642

ME 1642-S

ME 1642-A

48

71

1 1/2-3/4

ME 2242

ME 2242-S

ME 2242-A

48

71

1 1/2-1

ME 2842

ME 2842-S

ME 2842-A

48

71

1 1/2-1 1/4

ME 3642

ME 3642-S

ME 3642-A

48

71

2 -1/2

ME 1654

ME 1654-S

ME 1654-A

57

76

2 -3/4

ME 2254

ME 2254-S

ME 2254-A

57

76

2 -1

ME 2854

ME 2854-S

ME 2854-A

57

76

2 -1 1/4

ME 3654

ME 3654-S

ME 3654-A

57

76

2 -1 1/2

ME 4254

ME 4254-S

ME 4254-A

57

76

2 1/2-1/2

ME 1670

ME 1670-S

ME 1670-A

74

98

2 1/2-3/4

ME 2270

ME 2270-S

ME 2270-A

74

98

2 1/2-1

ME 2870

ME 2870-S

ME 2870-A

74

98

2 1/2-1 1/4

ME 3670

ME 3670-S

ME 3670-A

74

98

2 1/2-1 1/2

ME 4270

ME 4270-S

ME 4270-A

74

98

2 1/2-2

ME 5470

ME 5470-S

ME 5470-A

74

98

3 -1/2

ME 1682

ME 1682-S

ME 1682-A

72

108

3 -3/4

ME 2282

ME 2282-S

ME 2282-A

72

108

3 -1

ME 2882

ME 2882-S

ME 2882-A

72

108

3 -1 1/4

ME 3682

ME 3682-S

ME 3682-A

72

108

3 -1 1/2

ME 4282

ME 4282-S

ME 4282-A

72

108

3 -2

ME 5482

ME 5482-S

ME 5482-A

72

108

3 -2 1/2

ME 7082

ME 7082-S

ME 7082-A

72

108

4 -1/2

ME 16104

ME 16104-S

ME 16104-A

78

142

4 -3/4

ME 22104

ME 22104-S

ME 22104-A

78

142

4 -1

ME 28104

ME 28104-S

ME 28104-A

78

142

4 -1 1/4

ME 36104

ME 36104-S

ME 36104-A

78

142

4 -1 1/2

ME 42104

ME 42104-S

ME 42104-A

78

142

4 -2

ME 54104

ME 54104-S

ME 54104-A

78

142

4 -2 1/2

ME 70104

ME 70104-S

ME 70104-A

78

142

4 -3

ME 82104

ME 82104-S

ME 82104-A

78

142

(尺寸表僅供參考;實際尺寸以實體為主)
