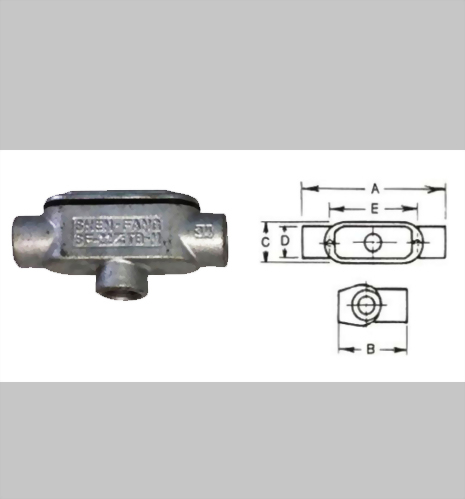

TB TYPE - CONDUIT OUTLET BOXES

We offer threaded and set-screw type conduit bodies for pulling, splicing and maintaining wires installed in rigid conduit . Conduit bodies, covers and gaskets can be ordered separately or as complete assemblies ready for installation.

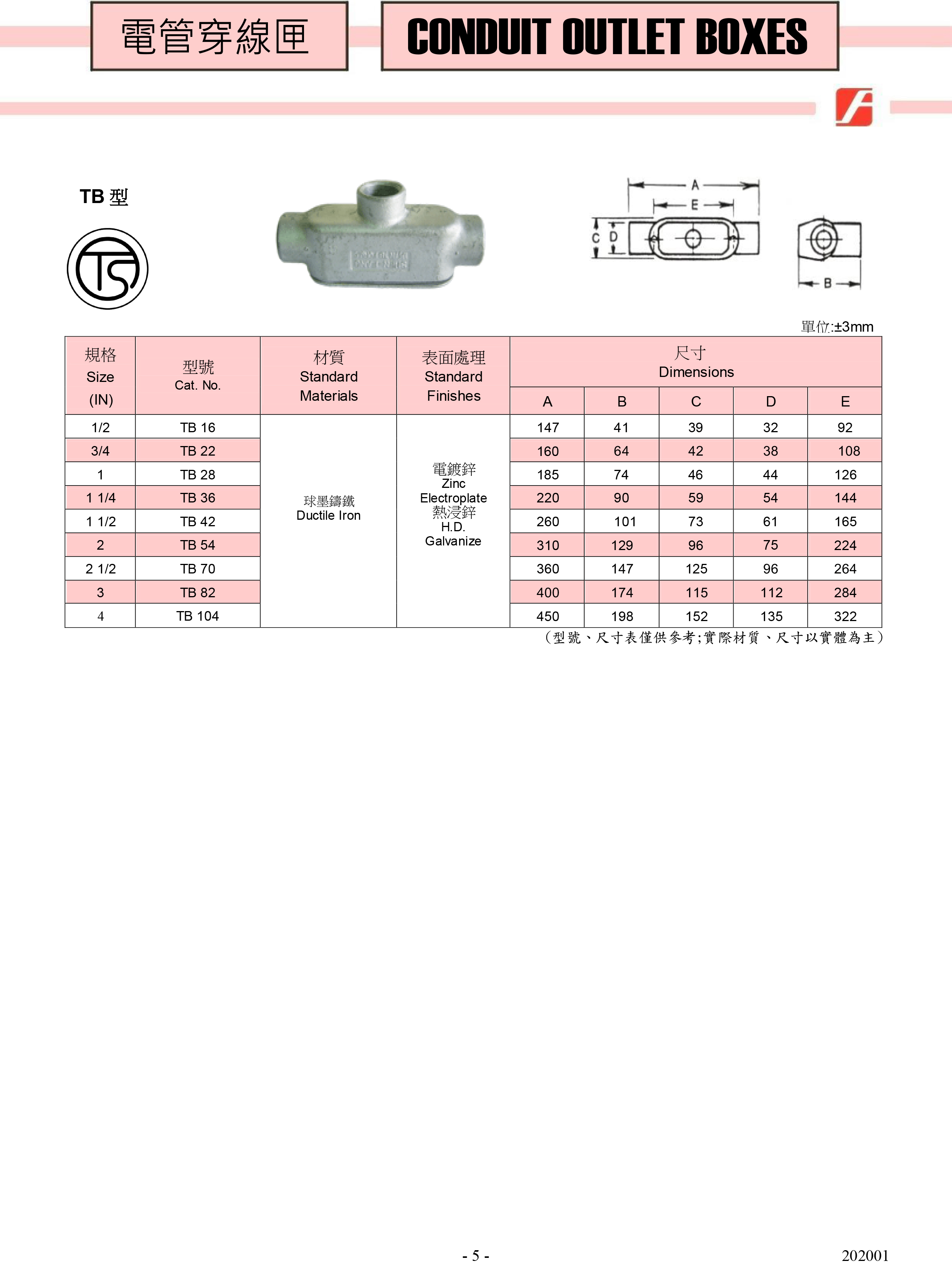

Model : TB16 TB22 TB28TB36 TB42 TB54 TB70 TB82 TB104

A conduit body can be used to provide pulling access in a run of conduit, to allow more bends to be made in a particular section of conduit, to conserve space where a full size bend radius would be impractical or impossible, or to split a conduit path into multiple directions. Conductors may not be spliced inside a conduit body, unless it is specifically listed for such use.More over,  Malleable-Iron types feature built-in pulling rollers that help prevent damage when cables are pulled through hubs. Flat-back models provide greater cubic content for easier wire pulling, and additional room for splicing. Fit flush and snug against flat surfaces for stable installation.

型式檢定合格證號:(ISTI)2023第07-00042號U
