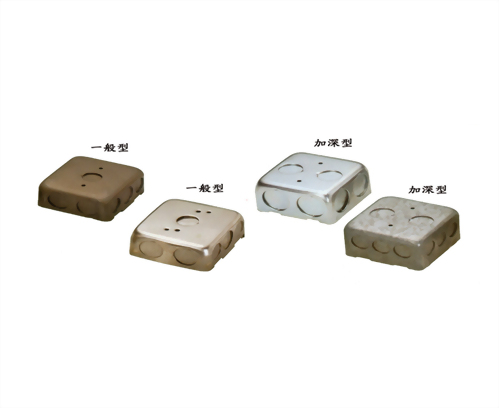

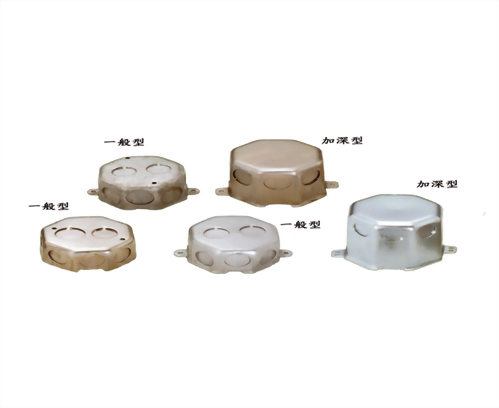

HANDY BOXES, SQUARE & OCTAGON BOXES
Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.
|

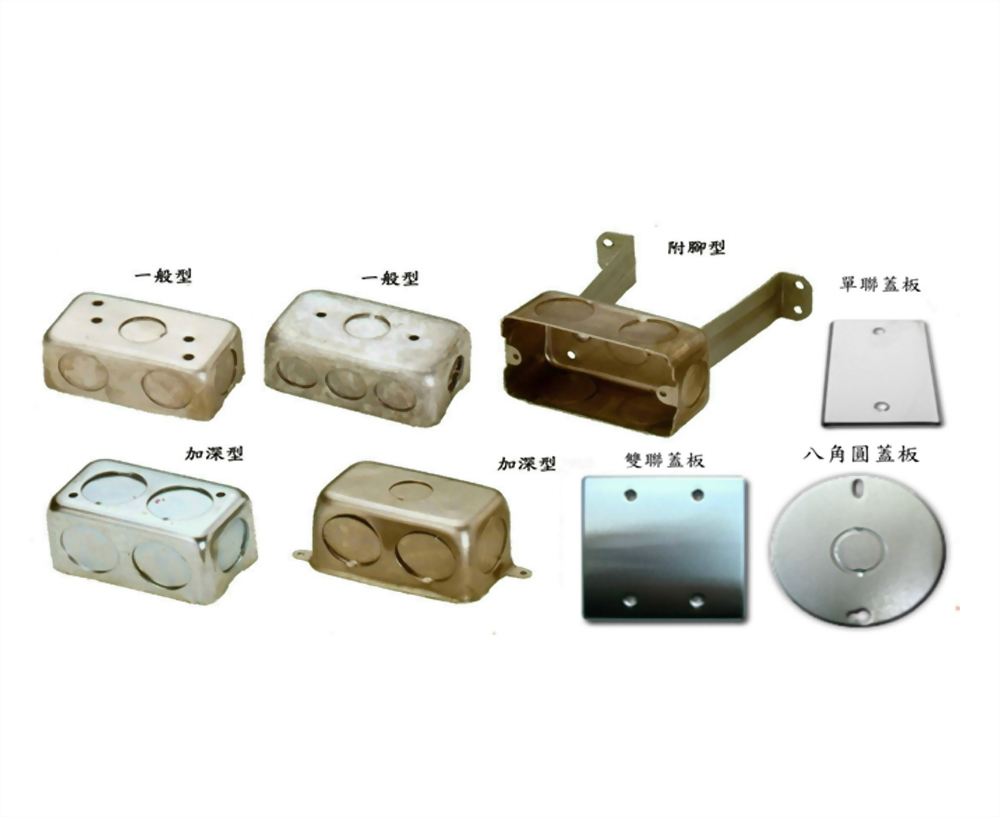

1P接線盒 |
|||||||||||||||
|
型式 |
材質 |
表面處理 |
規格 |
孔徑 |
厚度 T |
備註 |
|||||||||
|
W |
L |
H |
|||||||||||||
|
一般型 |
鋼板；錏板 |
電鍍鋅；熱浸鋅 |
52 |
92 |
40 |
1/2 , 3/4 |
1.2 |
1.6 |
2.0 |
|
|||||
|
一般型 |
不銹鋼 (SUS304) |
|
52 |
92 |
40 |
1/2 , 3/4 |
0.7 |
0.8 |
1.2 |
|
|||||
|
加深型 |
鋼板；錏板 |
電鍍鋅；熱浸鋅 |
55,60 |
100 |
50 |
1/2 , 3/4 , 1 |
1.6 |
2.0 |
|
|
|||||
|
加深型 |
不銹鋼 (SUS304) |
|
55,60 |
100 |
50 |
1/2 , 3/4 , 1 |
0.7 |
0.8 |
1.2 |
2.0 |
|
||||
|
附腳型 |
鋼板；錏板 |
電鍍鋅；熱浸鋅 |
52 |
92 |
120,150,180, 200,240 |
1/2 , 3/4 |
1.2 |
1.6 |
2.0 |
1.高度為含腳總高 2.附腳材質為黑鐵鍍鋅 |
|||||
|
附腳型 |
不銹鋼 (SUS304) |
|
52 |
92 |
120,150,180, 200,240 |
1/2 , 3/4 |
0.7 |
0.8 |
1.2 |
1.高度為含腳總高 2.附腳材質為黑鐵鍍鋅 |
|||||
|
蓋 板 |
|||||||||||||||
|
單聯蓋板 |
錏板&不銹鋼(SUS304)&熱浸鍍鋅 |
雙聯蓋板 |
錏板&不銹鋼(SUS304)&熱浸鍍鋅 |
八角圓蓋板 |
錏板&不銹鋼(SUS304)&熱浸鍍鋅 |
||||||||||
