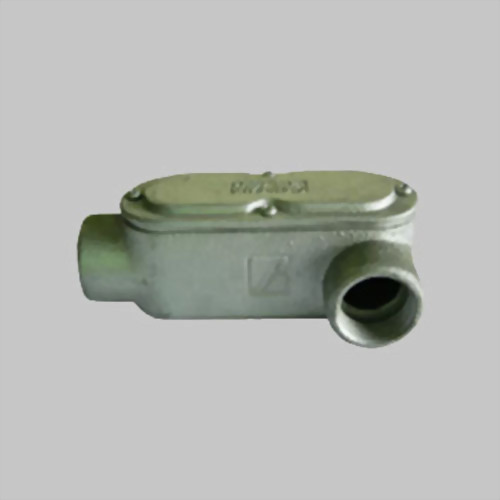

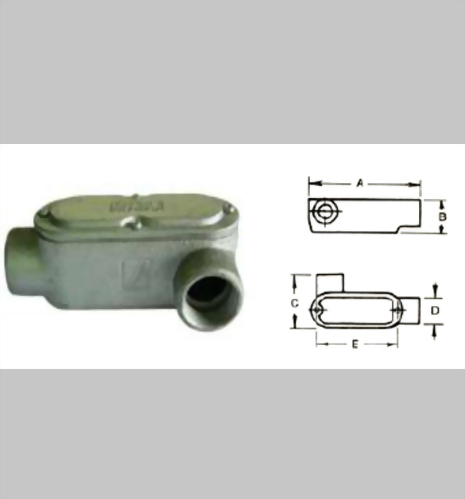

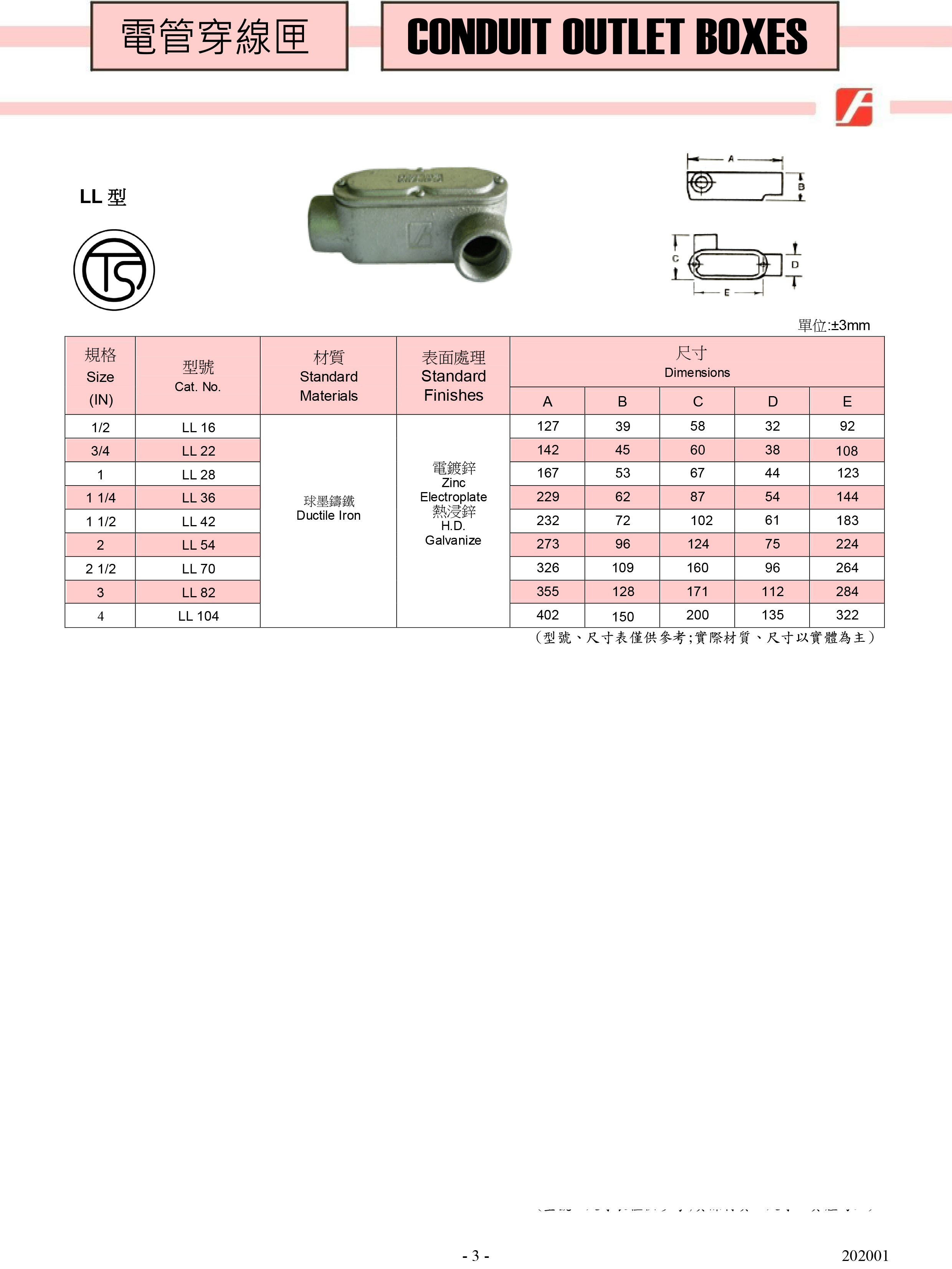

LL TYPE - CONDUIT OUTLET BOXES

We offer threaded and set-screw type conduit bodies for pulling, splicing and maintaining wires installed in rigid conduit . Conduit bodies, covers and gaskets can be ordered separately or as complete assemblies ready for installation.

A conduit body can be used to provide pulling access in a run of conduit, to allow more bends to be made in a particular section of conduit, to conserve space where a full size bend radius would be impractical or impossible, or to split a conduit path into multiple directions. Conductors may not be spliced inside a conduit body, unless it is specifically listed for such use.More over,  Malleable-Iron types feature built-in pulling rollers that help prevent damage when cables are pulled through hubs. Flat-back models provide greater cubic content for easier wire pulling, and additional room for splicing. Fit flush and snug against flat surfaces for stable installation.

單位:±3mm

規格
Size
(IN)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理
Standard
Finishes

鑄不銹鋼CF8 Stainless Steel

(SUS304,316)

鋁合金
Aluminum Alloy

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

B

C

D

E

1/2

LL 16

LL 16-M

電鍍鋅
Zinc
Electroplate

熱浸鋅
H.D.
Galvanize

達克銹

Dacrotizing

LL 16-S

LL 16-A

127

37

58

32

92

3/4

LL 22

LL 22-M

LL 22-S

LL 22-A

133

41

59

38

98

1

LL 28

LL 28-M

LL 28-S

LL 28-A

156

47

69

45

116

1 1/4

LL 36

LL 36-M

LL 36-S

LL 36-A

194

62

85

54

144

1 1/2

LL 42

LL 42-M

LL 42-S

LL 42-A

215

68

96

61

165

2

Ll 54

Ll 54-M

Ll 54-S

LL 54-A

247

83

110

75

191

2 1/2

LL 70

LL 70-M

LL 70-S

LL 70-A

285

105

140

94

220

3

LL 82

LL 82-M

LL 82-S

LL 82-A

335

116

161

108

263

4

LL104

LL104-M

LL104-S

LL104-A

400

150

197

135

320

(尺寸表僅供參考;實際尺寸以實體為主)
