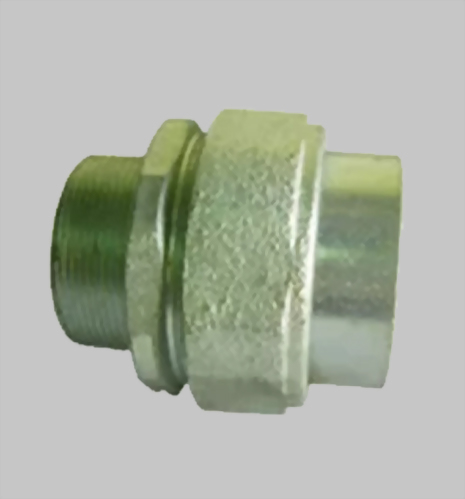

M-F UNIONS - CONDUIT FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.


The conduit union connects with two sections of rigid conduit when neither section can physically turn.The union is a conduit coupling used for explosion proof areas and in difficult places near corners, walls, or ceilings.


Shenfang Conduit fitting has hub size from1/2” to 4”. It is suitable for rigid conduit and Conduit outlet box.Our conduit fitting can apply for construction site or MRT and Power plant project.

單位:±3mm


規格
Size
(IN)

鑄鐵合金 &
 Feraloy Iron & Steel

表面處理
Standard
Finishes

不銹鋼

Stainless Steel

(SUS304,316)

(訂製品)

鋁合金
Aluminum Alloy

(訂製品)

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

B

1/2

UNY 16

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

UNY 16-S

UNY 16-A

50

42

3/4

UNY 22

UNY 22-S

UNY 22-A

61

48

1

UNY 28

UNY 28-S

UNY 28-A

69

56

1 1/4

UNY 36

UNY 36-S

UNY 36-A

76

67

1 1/2

UNY 42

UNY 42-S

UNY 42-A

86

81

2

UNY 54

UNY 54-S

UNY 54-A

96

90

2 1/2

UNY 70

UNY 70-S

UNY 70-A

109

110

3

UNY 82

UNY 82-S

UNY 82-A

123

125

4

 UNY 104

 UNY 104-S

 UNY 104-A

135

162

(尺寸表僅供參考;實際尺寸以實體為主)
