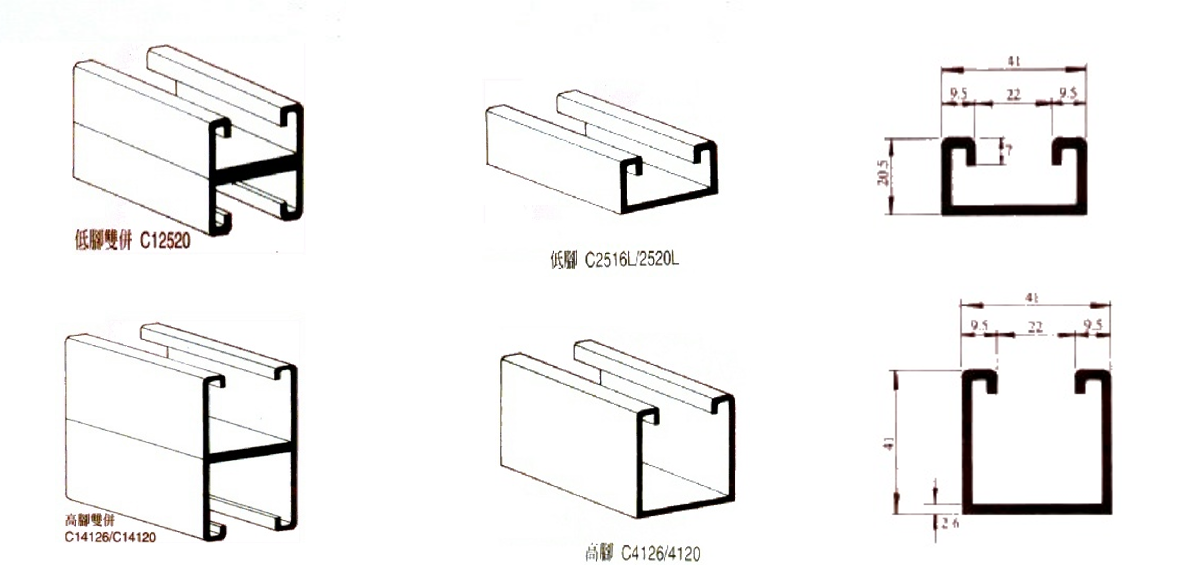

ANGLE STEEL, CHANNEL, THREADED ROD, UNISTRUT COMBINATIONS


Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.


編型

TYPE

HIGHNESS

WIDTH

厚度

THICKNESS

LENGTH

重量

Wt.kgs/m

備註

REMARKS

C4126

41m/m

41m/m

2.5m/m

3M

2.83kg/m

C4120

41m/m

41m/m

2.0m/m

3M

2.15kg/m

C2520L

25m/m

41m/m

2.0m/m

3M

1.70kg/m

C2516L

25m/m

41m/m

1.6m/m

3M

1.36kg/m

C2020L

20m/m

41m/m

2.0m/m

3M

1.65kg/m

C14126

41m/m

41m/m

2.5m/m

3M

5.70kg/m

(雙併)

C14120

41m/m

41m/m

2.0m/m

3M

4.50kg/m

C12520

25m/m

41m/m

2.0m/m

3M

3.50kg/m

(高腳)    不銹鋼

C4126S

41m/m

41m/m

2.5m/m

3M

2.83kg/m

C4120S

41m/m

41m/m

2.0m/m

3M

2.15kg/m

C4116S

41m/m

41m/m

1.6m/m

3M

1.62kg/m

(低腳)    不銹鋼

C2520S

25m/m

41m/m

2.0m/m

3M

1.70kg/m

C2515S

25m/m

41m/m

1.5m/m

3M

1.30kg/m

C2020S

20m/m

41m/m

2.0m/m

3M

1.60kg/m

材質:鍍鋅鋼板/熱浸鍍鋅     (尺寸表僅供參考;實際尺寸以實體為主)
