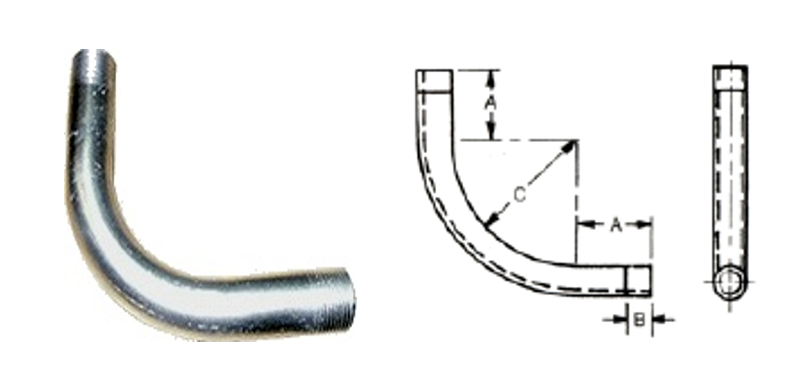

NORMAL BENDS - CONDUIT FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.


※訂製品:SUS316、鋁合金

單位:±3mm

規格
Size
(IN)



Steel

尺寸

Dimensions

不鏽鋼
Stainless Steel

型號
Cat. No.

表面處理
Standard
Finishes

A

B

C

型號
Cat. No.

材質
Standard
Materials

1/2

NB 16

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

50

18

150

NB 16-S

SUS 304

3/4

NB 22

50

18

155

NB 22-S

1

NB 28

50

20

160

NB 28-S

1 1/4

NB 36

70

25

180

NB 36-S

1 1/2

NB 42

70

25

210

NB 42-S

2

NB 54

90

30

290

NB 54-S

2 1/2

NB 70

100

30

350

NB 70-S

3

NB 82

120

40

360

NB 82-S

4

 NB 104

300

40

630

 NB 104-S

(尺寸表僅供參考;實際尺寸以實體為主)
