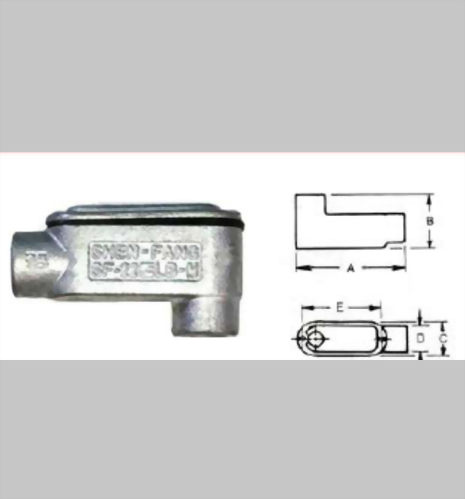

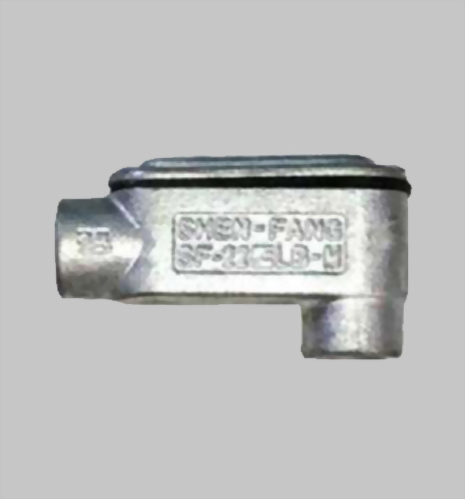

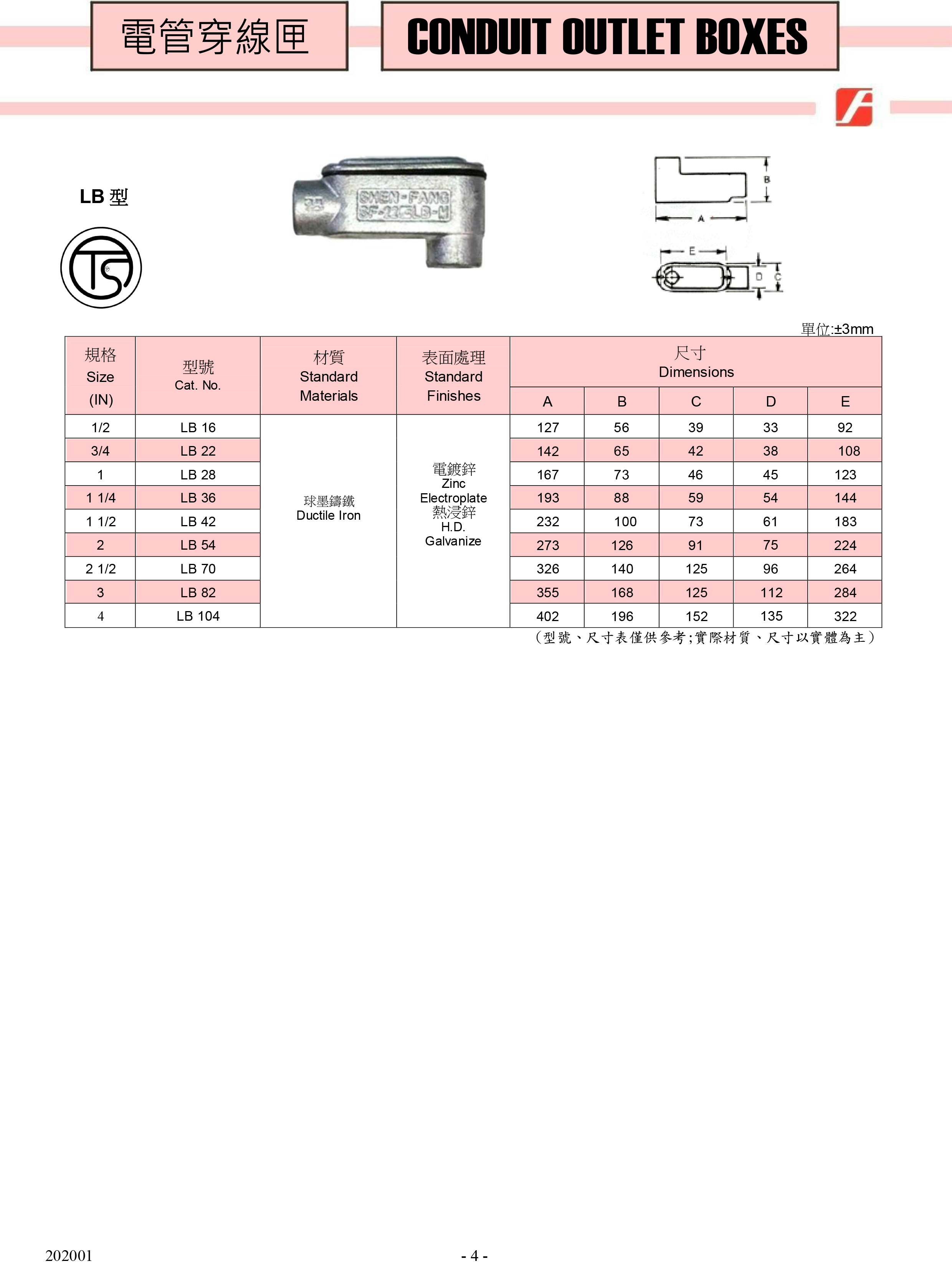

LB TYPE - CONDUIT OUTLET BOXES

We offer threaded and set-screw type conduit bodies for pulling, splicing and maintaining wires installed in rigid conduit . Conduit bodies, covers and gaskets can be ordered separately or as complete assemblies ready for installation.

A conduit body can be used to provide pulling access in a run of conduit, to allow more bends to be made in a particular section of conduit, to conserve space where a full size bend radius would be impractical or impossible, or to split a conduit path into multiple directions. Conductors may not be spliced inside a conduit body, unless it is specifically listed for such use.



單位:±3mm

規格
Size
(IN)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理
Standard
Finishes

鑄不銹鋼CF8 Stainless Steel

(SUS304,316)

鋁合金
Aluminum Alloy

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

B

C

D

E

1/2

LB 16

LB 16-M

電鍍鋅
Zinc
Electroplate

熱浸鋅
H.D.
Galvanize

達克銹

Dacrotizing

LB 16-S

LB 16-A

127

56

37

32

92

3/4

LB 22

LB 22-M

LB 22-S

LB 22-A

132

63

40

38

98

1

LB 28

LB 28-M

LB 28-S

LB 28-A

157

70

47

44

116

1 1/4

LB 36

LB 36-M

LB 36-S

LB 36-A

190

86

58

54

144

1 1/2

LB 42

LB 42-M

LB 42-S

LB 42-A

214

96

66

61

165

2

LB 54

LB 54-M

LB 54-S

LB 54-A

247

113

82

75

191

2 1/2

LB 70

LB 70-M

LB 70-S

LB 70-A

280

140

103

93

220

3

LB 82

LB 82-M

LB 82-S

LB 82-A

330

160

115

108

263

4

LB104

LB104-M

LB104-S

LB104-A

400

203

156

135

320

(尺寸表僅供參考;實際尺寸以實體為主)
