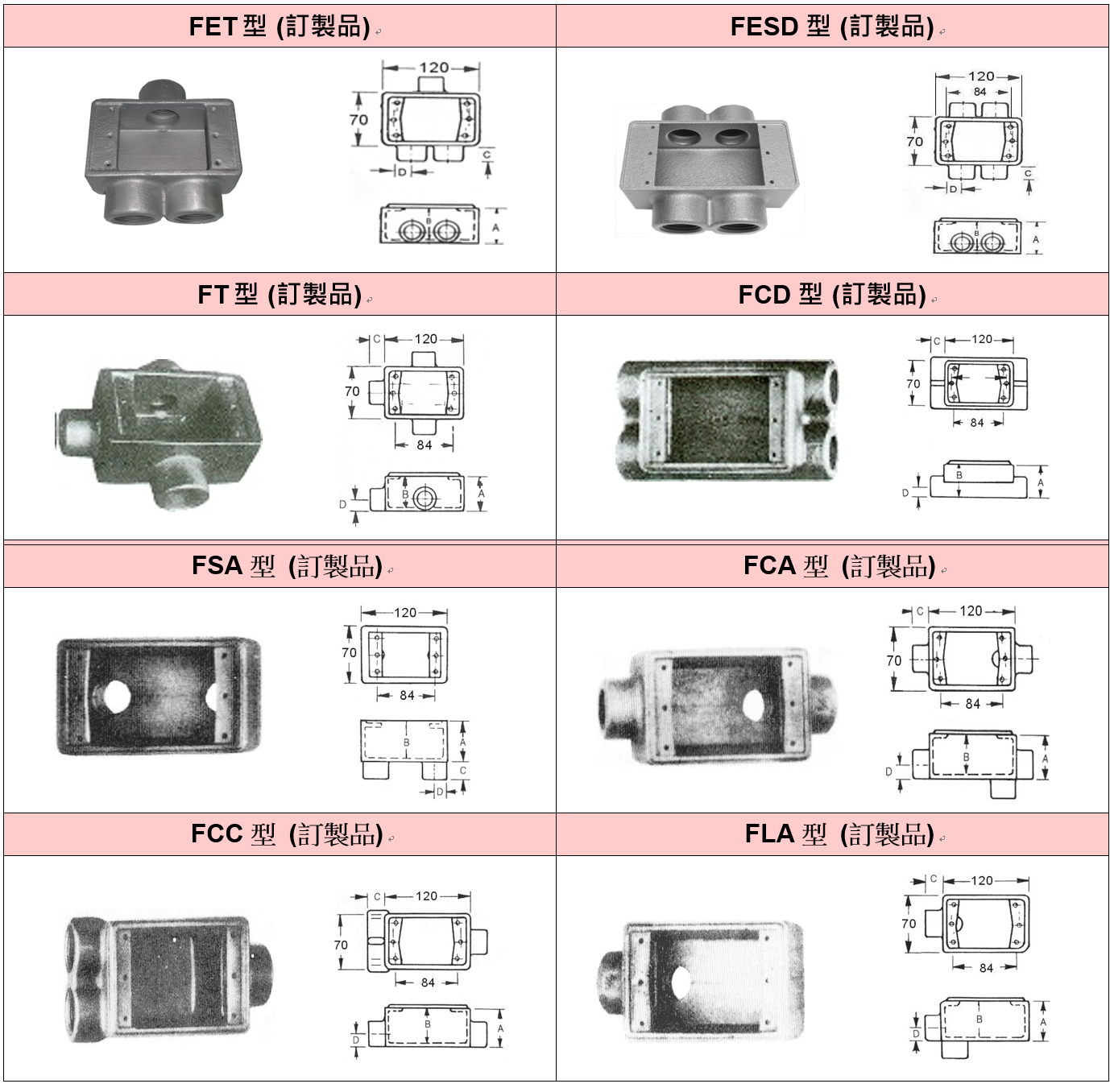

CAST DEVICE BOXES

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.


單位:±3mm

規格
Size
(IN)

材質

Stainless Steel

表面處理
Standard

Finishes

尺寸

Dimensions

備註

Remarks

 A

B

C

D

1/2

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

電鍍鋅
Zinc
Electroplate

熱浸鋅
H.D.
Galvanize

達克銹

Dacrotizing

48

44

22

16

其它材質:

鋁合金
Alluminum Alloy

鑄不銹鋼CF8 Stainless steel

(SUS304,316)

3/4

48

44

22

18

1

48

44

22

22

(尺寸表僅供參考;實際尺寸以實體為主)
