FLEXIBLE METAL CONDUIT MC type

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

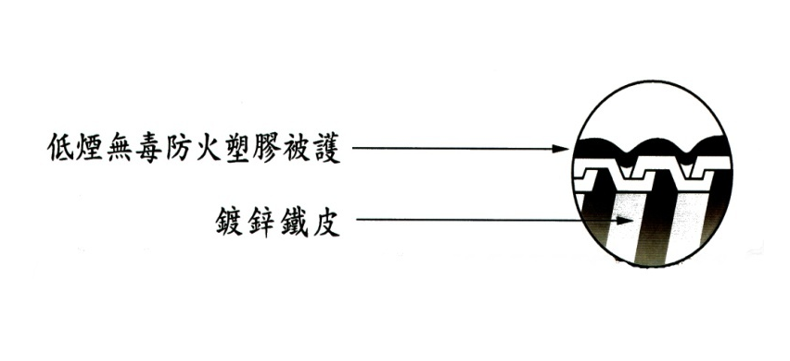

鍍鋅鐵皮製成,防水性佳符合CNS6101C4245規範

單位:±3mm

 型號

CAT NO

尺寸

Nominal size

Inner diameter

Outside diameter

可彎曲半徑

Min Bending Radius

每卷長度

Packing Length

min

max

min

max

mm

m/Roll

mm

mm

mm

mm

MC10

3/8

12.30

12.80

16.70

17.20

50

50

MC16

1/2

15.70

16.30

20.20

20.70

65

50

MC22

3/4

20.70

21.20

25.50

26.10

75

50

MC28

1

26.00

26.60

31.60

32.20

100

50

MC36

1-1/4

34.70

35.40

40.80

41.50

125

30

MC42

1-1/2

40.00

40.60

46.60

47.20

150

30

MC54

2

51.30

51.90

58.10

58.70

175

20

MC70

2-1/2

62.90

63.60

72.10

73.00

200

10

MC82

3

77.90

78.70

87.90

88.90

225

10

MC104

4

101.60

102.60

113.20

114.30

275

10

(尺寸表僅供參考;實際尺寸以實體為主)
