WGA、WGC、WGL、WGT、WGX - CIRCULAR SURFACE BOXES



Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.



單位:±3mm

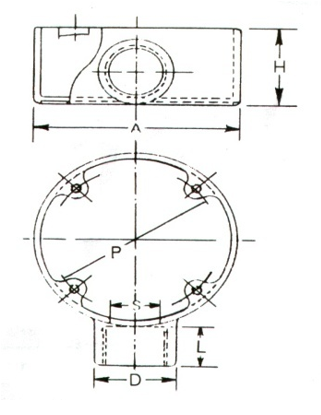

尺寸

Dimensions

WG

1/2

WG

3/4

WG

1

WG

 1 1/4

WG

 1 1/2

WG

 2

A

89

89

100

114

114

140

P

73

73

84

96

96

122

H

41

41

45

56

71

86

L

18

20

20

25

25

25

D

28

35

42

50

60

72

S

16

22

29

36

45

56

材質:鑄鐵合金、韌鐵 (表面處理:電鍍鋅、熱浸鋅、熱噴鋅) 鋁合金

蓋板:錏板、SUS304、鑄鐵平蓋、鑄鐵牙蓋3/4

重量(g)

525

605

700

1020

1500

1800




(尺寸表僅供參考;實際尺寸以實體為主)
