Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.breathers and drains are for use in hazardous location conduit systems to drain accumulated condensate and provide ventilation to minimize condensation.  A breather is installed in the top of an enclosure or in the upper section of a conduit system.  A standard drain is installed in the bottom of an enclosure or in the lower section of a conduit system.  At least one breather should be used with each drain.

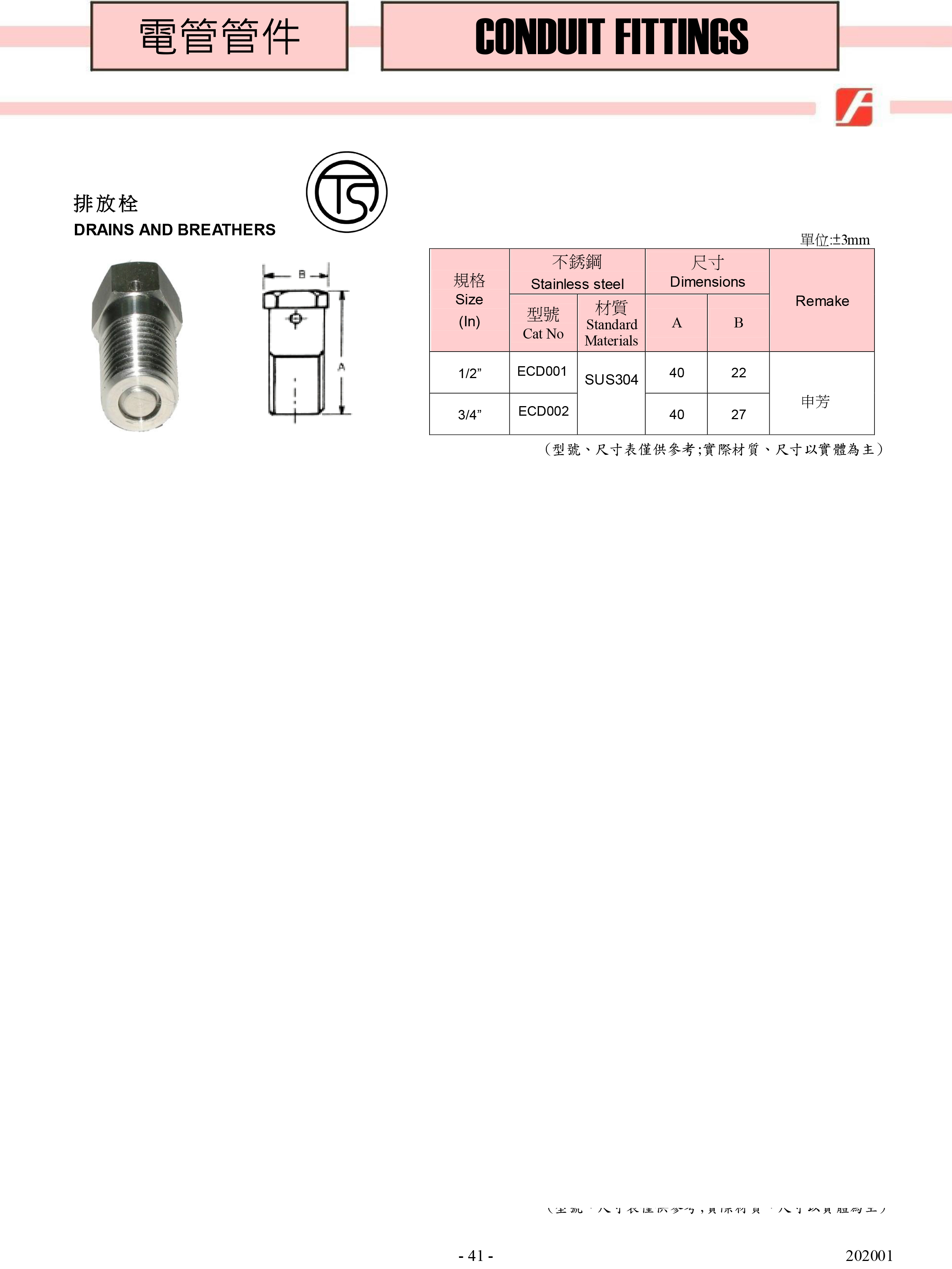

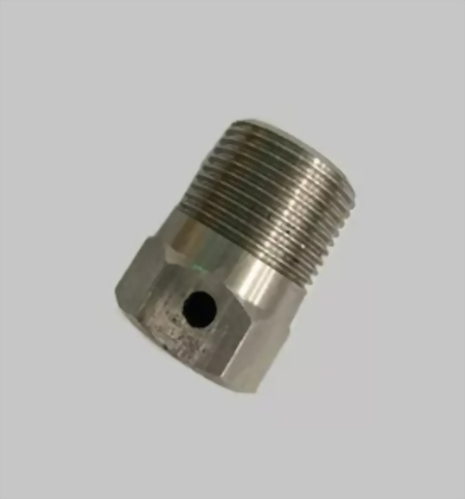

TS certificated :ECD TYPE- Drain and Breather

型式檢定合格證號: (ISTI)2023第07-00005號U

Material: SUS304

Explosion Proof Grade: Ex db IIC Gb  Ex tb IIIC Db
