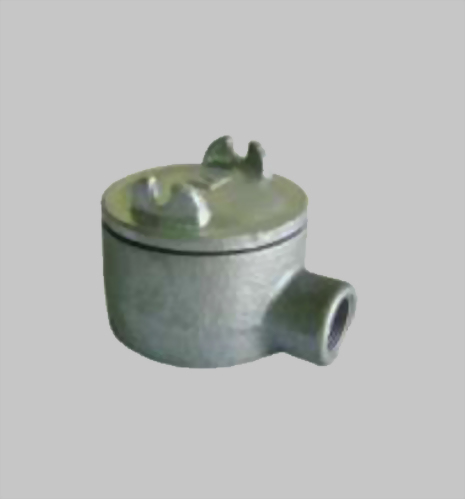

GA TYPE - EXPLOSION PROOF ROUND OUTLET BOXES

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Model : GA16,GA22,GA28,GA36,GA42,GA54

Q'ty :

TS 認證 : GA型-耐壓防爆圓型接線盒

型式檢定合格證號: (ETC)2020第07-00025U號

單位:±3mm

規格 Size (IN)	鑄鐵合金 Cast Iron	球墨鑄鐵 Ductile Iron	表面處理 Standard Finishes	鑄不銹鋼CF8 Stainless Steel (SUS304,316)	鋁合金 Aluminum Alloy	尺寸 Dimensions
規格 Size (IN)	型號 Cat. No.	型號 Cat. No.	表面處理 Standard Finishes	型號 Cat. No.	型號 Cat. No.	A	B	C	D
1/2	GA-16	GA -16D	電鍍鋅 Zinc Electroplate 熱浸鋅 H.D. Galvanize	GA -16S / GA -16S6	GA -16A	90	57	18	22
3/4	GA-22	GA- 22D		GA -22S / GA- 22S6	GA -22A	90	60	18	22
1	GA-28	GA -28D		GA- 28S / GA- 28S6	GA- 28A	90	67	23	23
1 1/4	GA-36	GA -36D		GA -36S / GA- 36S6	GA -36A	108	73	30	23
1 1/2	GA-42	GA -42D		GA -42S /GA -42S6	GA -42A	145	106	32	30
2	GA-54	GA -54D		GA -54S / GA- 54S6	GA -54A	145	106	35	30
