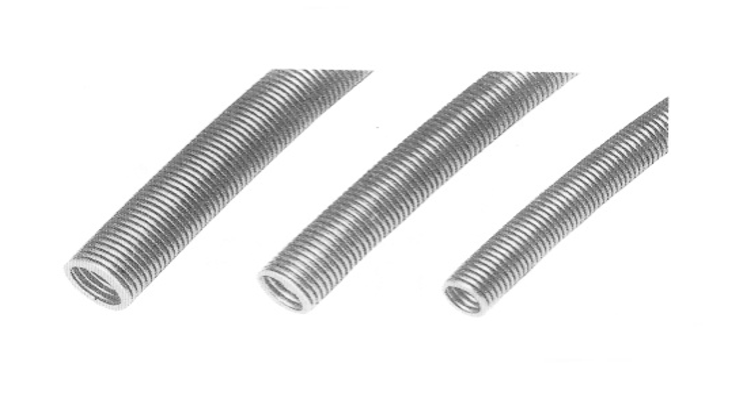

PLICA TUBE – PZ4 - FLEXIBLE METAL CONDUIT

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Excellent features of PZ-4 Plica-Tube Resistance to corrosion. Screwing is not necessary. Bendable, can be wounded to any desir-able shape Ease of cutting The PZ-4 can be used for electric piping indoor piping. When used for moisture locations, you can coated with paint to extend weather-resistance.
單位:±3mm

 型號

CAT NO

公稱管徑

CONDUIT SIZE

內徑(mm)

INNER DIAMETER

外徑(mm)

OUTER DIAMETER

每卷長度(m)

LENGTH PERROLL

PZ 4-10#

PF 1/2 ()

9.2

13.3

50

PZ 4-12#

PF 1/4 ()

11.4

16.1

50

PZ 4-15#

PF 3/4 ()

14.1

19.0

50

PZ 4-17#

PF 1/2 (16)

16.6

21.5

50

PZ 4-24#

PF 3/4 (22)

23.8

28.8

50

PZ 4-30#

PF 1 (28)

29.3

34.9

25

PZ 4-38#

PF 1 1/4 (36)

37.1

42.9

25

PZ 4-50#

PF 1 1/2 (42)

49.1

54.9

25

PZ 4-63#

PF 2 (54)

62.6

69.1

10

PZ 4-76#

PF 2 1/2 (70)

76.0

82.9

10

PZ 4-83#

PF 3 (82)

81.0

88.1

10

PZ 4-104#

PF 4 (104)

100.2

107.3

5

(尺寸表僅供參考;實際尺寸以實體為主)
