HANDY BOXES, SQUARE & OCTAGON BOXES
Conduit fittings are used for an electrical
conduit system from the overhead service entrance to machinery, and final
electrical outlets. Conduit fittings are generally installed by electricians at
the site of installation of electrical equipment.
單位:±3mm
|

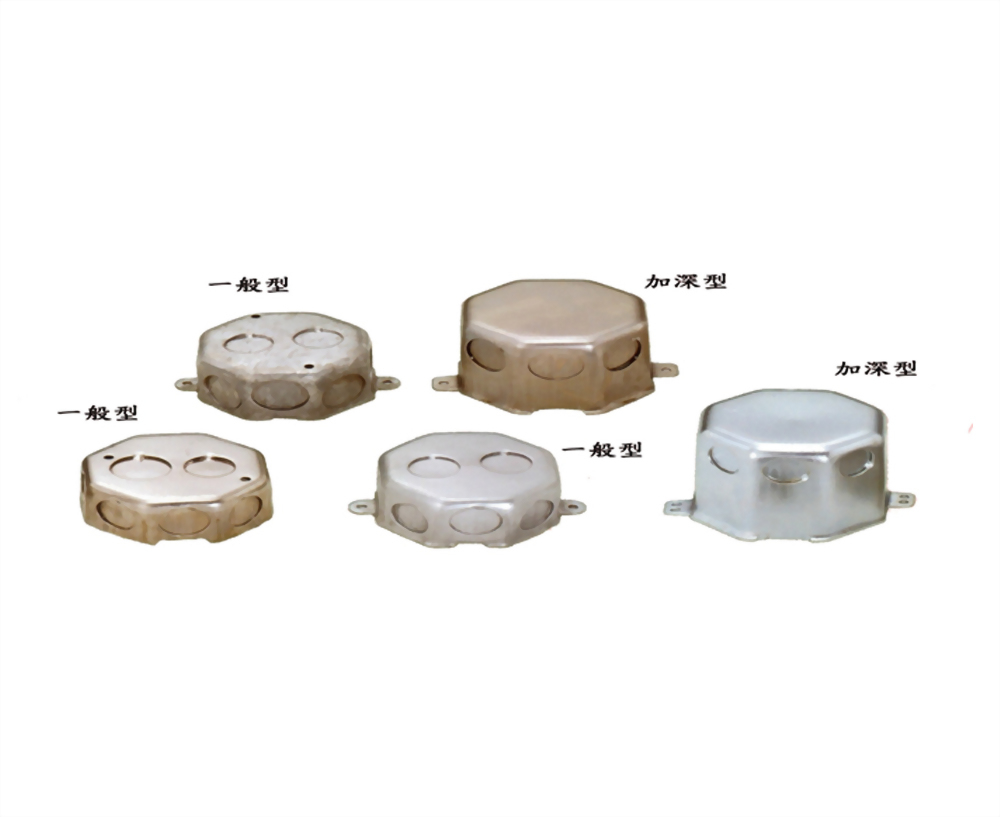

八角接線盒 |
||||||||||
|
型式 |
材質 |
表面處理 |
規格 |
孔徑 |
厚度 (T) |
備註 |
||||
|
W |
L |
H |
||||||||
|
一般型 |
鋼板；錏板 |
電鍍鋅；熱浸鋅 |
85 |
85 |
40 |
1/2 , 3/4 |
1.2 |
1.6 |
2.0 |
|
|
一般型 |
不銹鋼(SUS304) |
|
85 |
85 |
40 |
1/2 , 3/4 |
0.7 |
0.8 |
|
|
|
加深型 |
鋼板；錏板 |
電鍍鋅；熱浸鋅 |
100 |
100 |
50,65,75,85 |
1/2 , 3/4 , 1 |
1.2 |
1.6 |
2.0 |
|
|
加深型 |
不銹鋼(SUS304) |
|
100 |
100 |
50,65,70,85 |
1/2 , 3/4 , 1 |
0.7 |
0.8 |
|
|
