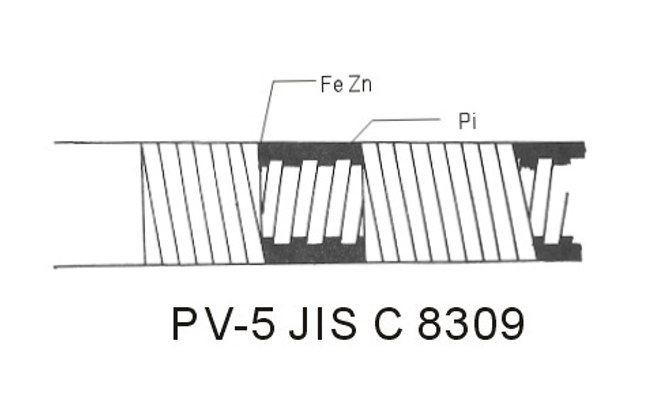

WATERPROOF PLICA TUBE - PV5 - FLEXIBLE METAL CONDUIT

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

The PV-5 is the same as PZ-4 but is covered with weather-resistant PVC through a special adhesive method including all features of PZ-4, the PV-5 also resistance to corrosion, water and chemicals. The PV-5 can be used for outdoor exposed electric piping construction machinery piping and shipbiliding piping.
單位:±3mm

型號

CAT NO

公稱管徑

CONDUIT SIZE

內徑(mm)

INNER DIAMETER

外徑(mm)

OUTER DIAMETER

每卷長度(m)

LENGTH PERROLL

PV 5-10#

PF 1/2 ()

9.2

14.9

50

PV 5-12#

PF 1/4 ()

11.4

17.7

50

PV 5-15#

PF 3/4 ()

14.1

20.6

50

PV 5-17#

PF 1/2 (16)

16.6

23.1

50

PV 5-24#

PF 3/4 (22)

23.8

30.4

50

PV 5-30#

PF 1 (28)

29.3

36.5

25

PV 5-38#

PF 1 1/4 (36)

37.1

44.9

25

PV 5-50#

PF 1 1/2 (42)

49.1

56.9

25

PV 5-63#

PF 2 (54)

62.6

71.5

10

PV 5-76#

PF 2 1/2 (70)

76.0

85.3

10

PV 5-83#

PF 3 (82)

81.0

90.9

10

PV 5-104#

PF 4 (104)

100.2

110.1

5

(尺寸表僅供參考;實際尺寸以實體為主)
