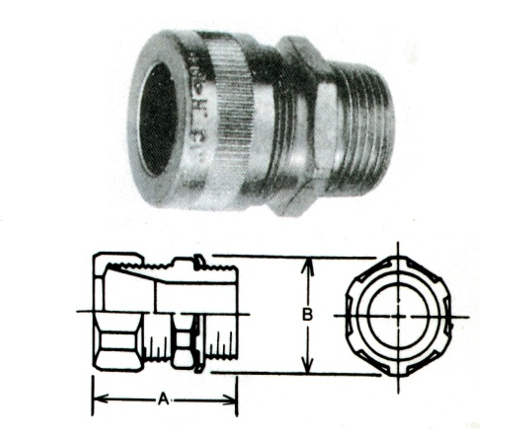

CABLE GLAND - CONDUIT FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.


單位:±3mm

規格

Size

(In)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理

Standard Finishes

黃銅

Brass

尺寸

Dimensions

型號

Cat No

型號
Cat. No.

型號

Cat No

A

B

1/2

CGB 16

CGM 16-M

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

CGB 16-B

40

38

3/4

CGB 22

CGM 22-M

CGB 22-B

42

41

1

CGB 28

CGM 28-M

CGB 28-B

47

52

1 1/4

CGB 36

CGM 36-M

CGB 36-B

57

63

1 1/2

CGB 42

CGM 42-M

CGB 42-B

69

68

2

CGB 54

CGM 54-M

CGB 54-B

82

77

2 1/2

CGB 70

CGM 70-M

CGB 70-B

85

108

3

CGB 82

CGM 82-M

CGB 82-B

92

125

4

CGB104

(尺寸表僅供參考;實際尺寸以實體為主)


CGM104-M

CGB104-B

100

155

(尺寸表僅供參考;實際尺寸以實體為主)
