• Conduit fittings, Junction box,conduit outlet box

EMT Conduit Pipe

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.

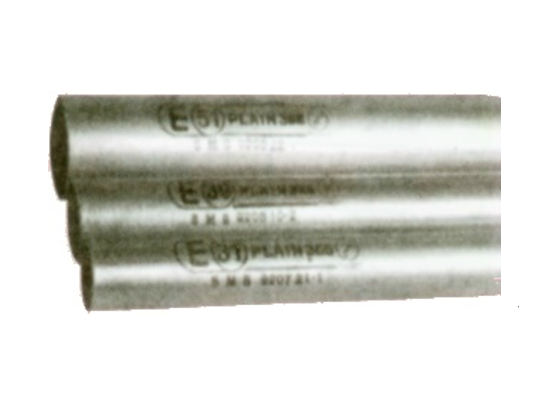

無牙電線管(E.M.T) - EMT無牙導線管

型號

外徑

(mm)

外徑容許差(mm)

厚度

(mm)

長度容許差(mm)

重量

(kg/m)

EMT-19

19.1

±0.15

1.2

±5

0.530

EMT-25

25.4

±0.15

1.2

±5

0.716

EMT-31

31.8

±0.15

1.4

±5

1.050

EMT-39

38.1

±0.15

1.4

±5

1.270

EMT-51

50.8

±0.15

1.4

±5

1.710

EMT-63

63.5

±0.25

1.6

±5

2.440

EMT-75

76.2

±0.25

1.8

±5

3.300
