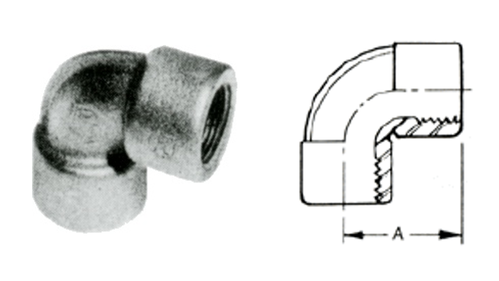

90∘M-F ELBOWS - CONDUIT FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.



單位:±3mm

規格
Size
(IN)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理
Standard
Finishes

鋁合金
Aluminum Alloy

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

1/2

ELMF 16

ELMF 16-M

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

ELMF 16-A

39

3/4

ELMF 22

ELMF 22-M

ELMF 22-A

41

1

ELMF 28

ELMF 28-M

ELMF 28-A

51

1 1/4

ELMF 36

ELMF 36-M

ELMF 36-A

         57  (訂製品)

1 1/2

ELMF 42

ELMF 42-M

ELMF 42-A

        64  (訂製品)

2

ELMF 54

ELMF 54-M

ELMF 54-A

        77  (訂製品)

1/2 × 3/4

ELMF 1622

ELMF 1622-M

ELMF 1622-A

41

(尺寸表僅供參考;實際尺寸以實體為主)
