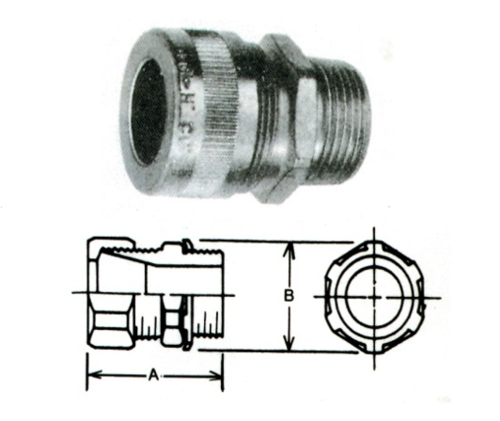

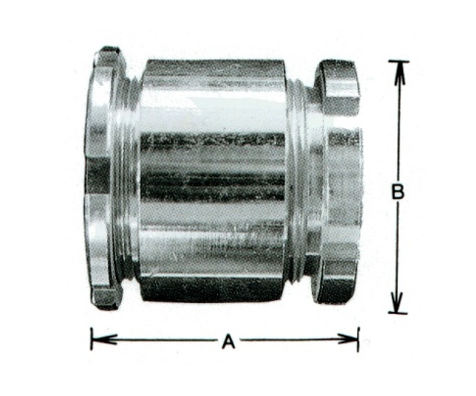

CABLE GLAND - CONDUIT FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.


單位:±3mm

規格

Size

(In)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理

Standard Finishes

黃銅

Brass

尺寸

Dimensions

型號

Cat No

型號
Cat. No.

型號

Cat No

A

B

1/2

CGS 16

CGS 16-S

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

CGS 16-B

46

32

3/4

CGS 22

CGS 22-S

CGS 22-B

49

34

1

CGS 28

CGS 28-S

CGS 28-B

60

42

1 1/4

CGS 36

CGS 36-S

CGS 36-B

63

50

1 1/2

CGS 42

CGS 42-S

CGS 42-B

70

64

2

CGS 54

(尺寸表僅供參考;實際尺寸以實體為主)


CGS 54-S

CGS 54-B

74

70

(尺寸表僅供參考;實際尺寸以實體為主)
