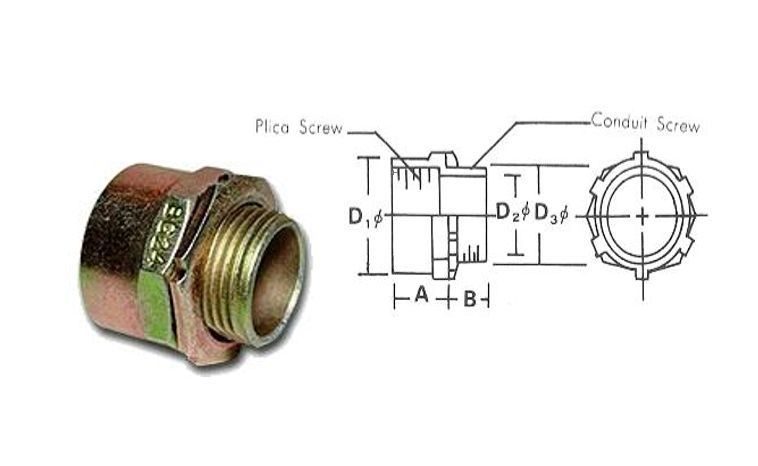

BOX CONNECTOR FOR PLICA PZ4-BG - 軟管用接頭
單位:±3mm
|
型號 CAT NO |
公稱管徑 CONDUIT SIZE |
A |
B |
D1φ |
D2φ |
D3φ |
|
BG-17# |
PF 1/2 (16) |
21.2 |
15.2 |
25.5 |
14.5 |
20.3 |
|
BG-24# |
PF 3/4 (22) |
24.5 |
16.5 |
32.5 |
20.0 |
25.7 |
|
BG-30# |
PF 1 (28) |
28.3 |
17.2 |
40.4 |
27.0 |
32.2 |
|
BG-38# |
PF 1 1/4 (36) |
30.0 |
18.1 |
48.7 |
34.5 |
41.2 |
|
BG-50# |
PF 1 1/2 (42) |
39.1 |
20.0 |
61.2 |
39.5 |
47.4 |
|
BG-63# |
PF 2 (54) |
40.7 |
20.8 |
75.6 |
51.0 |
59.0 |
|
BG-76# |
PF 2 1/2 (70) |
41.5 |
23.0 |
90.0 |
66.0 |
74.9 |
|
BG-83# |
PF 3 (82) |
55.3 |
27.6 |
95.0 |
78.5 |
87.0 |
|
BG-104# |
PF 4 (104) |
68.1 |
30.2 |
115.6 |
103.5 |
112.5 |
