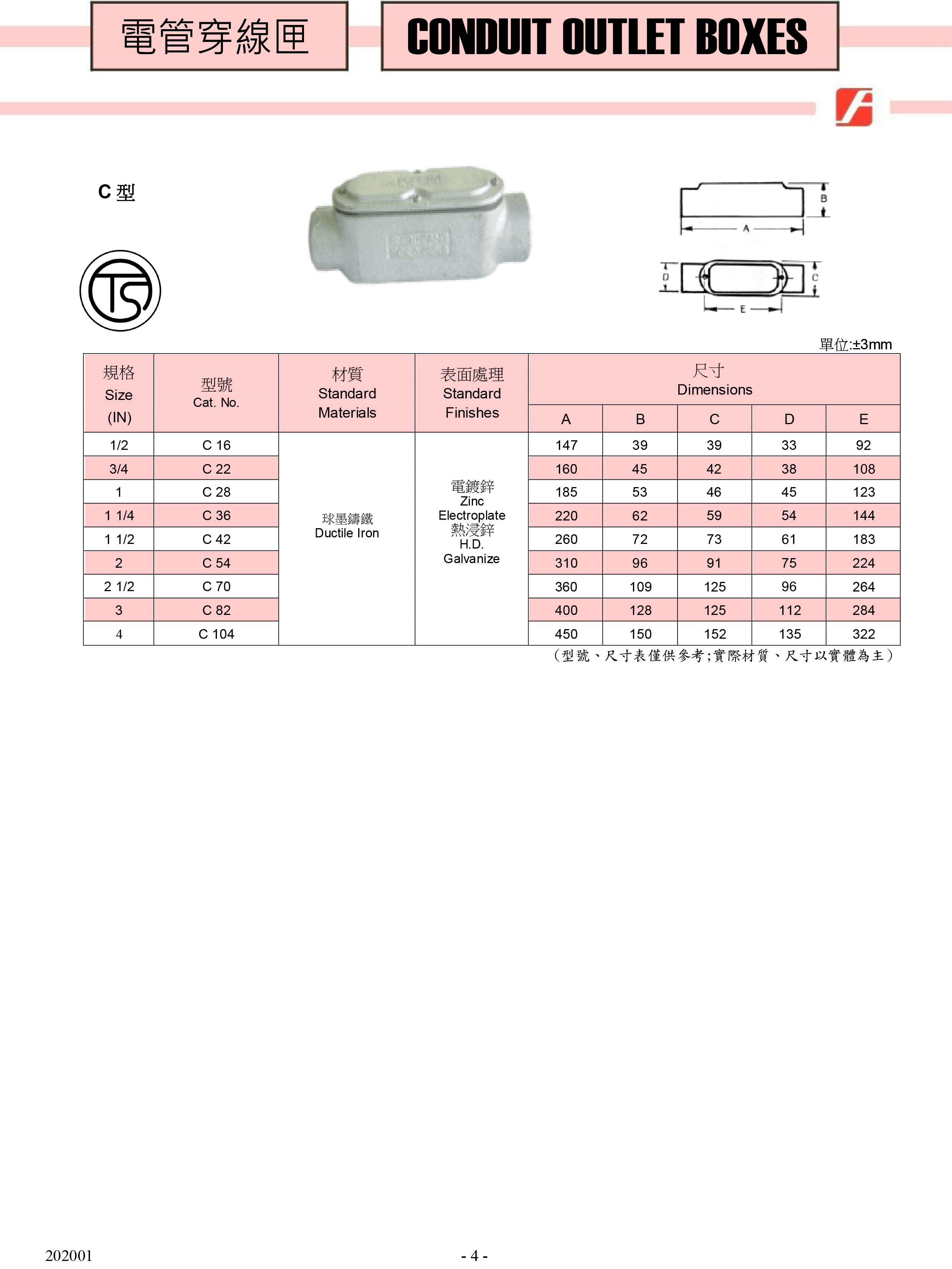

C TYPE - CONDUIT OUTLET BOXES

We offer threaded and set-screw type conduit bodies for pulling, splicing and maintaining wires installed in rigid conduit . Conduit bodies, covers and gaskets can be ordered separately or as complete assemblies ready for installation.

A conduit body can be used to provide pulling access in a run of conduit, to allow more bends to be made in a particular section of conduit, to conserve space where a full size bend radius would be impractical or impossible, or to split a conduit path into multiple directions. Conductors may not be spliced inside a conduit body, unless it is specifically listed for such use.More over,  Malleable-Iron types feature built-in pulling rollers that help prevent damage when cables are pulled through hubs. Flat-back models provide greater cubic content for easier wire pulling, and additional room for splicing. Fit flush and snug against flat surfaces for stable installation.



單位:±3mm

規格
Size
(IN)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理
Standard
Finishes

鑄不銹鋼CF8 Stainless Steel

(SUS304,316)

鋁合金
Aluminum Alloy

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

B

C

D

E

1/2

C 16

C 16-M

電鍍鋅
Zinc
Electroplate

熱浸鋅
H.D.
Galvanize

達克銹

Dacrotizing

C 16-S

C 16-A

146

37

36

32

92

3/4

C 22

C 22-M

C 22-S

C 22-A

150

41

40

38

106

1

C 28

C 28-M

C 28-S

C 28-A

181

47

47

44

116

1 1/4

C 36

C 36-M

C 36-S

C 36-A

218

59

59

54

144

1 1/2

C 42

C 42-M

C 42-S

C 42-A

245

67

67

56

186

2

C 54

C 54-M

C 54-S

C 54-A

275

82

82

75

191

2 1/2

C 70

C 70-M

C 70-S

C 70-A

325

105

103

94

220

3

C 82

C 82-M

C 82-S

C 82-A

370

116

115

108

263

4

C104

C104-M

C104-S

C104-A

450

151

156

135

320
