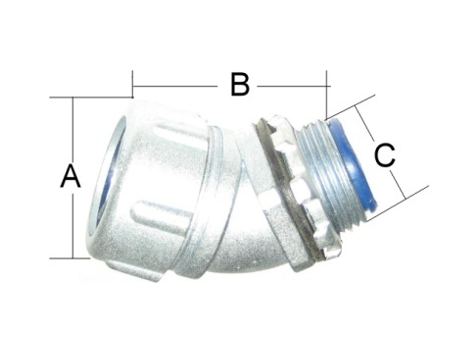

45 degree WATERPROOF UNION ELBOW CONNECTOR FOR APN FLEXIBLE-NAG


單位:±3mm

型號

規格

A

B

C

MAG 16

1/2

31

20

42

MAG 22

3/4

36

25

47

MAG 28

1

44

32

52

MAG 36

1-1/4

54

43

56

MAG 42

1-1/2

61

47

60

MAG 54

2

76

58

67

MAG 70

2-1/2

92

80

80

MAG 82

3

107

87

87

MAG 104

4

141

112

92

(尺寸表僅供參考;實際尺寸以實體為主)
