Conduit Outlet Boxes, Conduit bodies, Sealing fittings

X TYPE - CONDUIT OUTLET BODIES

We offer threaded and set-screw type conduit bodies for pulling, splicing and maintaining wires installed in rigid conduit . Conduit bodies, covers and gaskets can be ordered separately or as complete assemblies ready for installation.

Model : X16,X22,X28,X36,X42,X54,X70,X82,X104

Q'ty :

A conduit body can be used to provide pulling access in a run of conduit, to allow more bends to be made in a particular section of conduit, to conserve space where a full size bend radius would be impractical or impossible, or to split a conduit path into multiple directions. Conductors may not be spliced inside a conduit body, unless it is specifically listed for such use.More over, Malleable-Iron types feature built-in pulling rollers that help prevent damage when cables are pulled through hubs. Flat-back models provide greater cubic content for easier wire pulling, and additional room for splicing. Fit flush and snug against flat surfaces for stable installation.

UL List E Number : E 493318 (安全增防爆)

According to NEC Articles 501.10(b), this fitting is suitable for use in Class I ,Divison 2

單位:±3mm

規格 Size (IN)	鑄鐵 Cast Iron	可鍛鑄鐵 Malleable Iron 球墨鑄鐵 Ductile Iron	表面處理 Standard Finishes	鑄不銹鋼CF8 Stainless Steel (SUS304,316)	鋁合金 Aluminum Alloy	尺寸 Dimensions

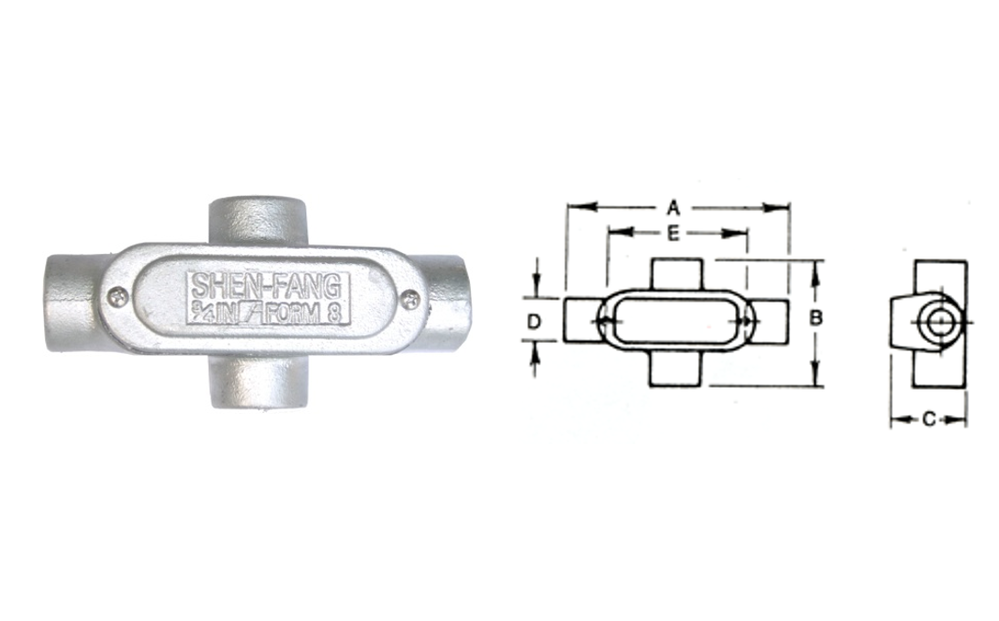

規格 Size (IN)	型號 Cat. No.	型號 Cat. No.	表面處理 Standard Finishes	型號 Cat. No.	型號 Cat. No.	A	B	C	D	E
1/2	X 16	X 16-M	電鍍鋅 Zinc Electroplate 熱浸鋅 H.D. Galvanize 達克銹 Dacrotizing	X 16-S	X 16-A	146	75	45	32	92
3/4	X 22	X 22-M		X 22-S	X 22-A	162	81	48	38	97
1	X 28	X 28-M		X 28-S	X 28-A	185	95	55	44	126
1 1/4	X 36	X 36-M		X 36-S	X 36-A	220	110	67	54	144
1 1/2	X 42	X 42-M		X 42-S	X 42-A	263	132	77	61	186
2	X 54	X 54-M		X 54-S	X 54-A	310	158	95	75	224
2 1/2	X 70	X 70-M		X 70-S	X 70-A	325	178	104	93	223
3	X 82	X 82-M		X 82-S	X 82-A	400	212	128	110	285
4	X104	X104-M		X104-S	X104-A	475	256	155	138	341

(尺寸表僅供參考;實際尺寸以實體為主)

Standard Materials :

Cast Iron

Ductile Iron

Malleable Iron

Aluminum

SUS 304

SUS 316

Standard Finishes :

Hot Dip Galvanizing

Electroplated with Zinc

1.Our Conduit bodies' features are smooth, and rounded integral bushings in hubs will protect conductor insulation.

2. Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity.

3. Conduit bodies with cast covers and gasket are suitable for use in wet locations.

4. Conduit bodies can provide installed conductors with pull outlets

5. Flat back design provides greater cubic content for easier wire pulling, and more room for splicing. Fits flush and snug against flat surfaces for more stable installation.

6. Conduit bodies can allow conduit runs to bend 90 degree.

7. Smooth hub bushings and cover openings protect conductor insulation. Smooth hub openings allow easy conduit joining.

8. Hub size, body style, compliance data, maximum wire number/ size and cubic capacity molded into body.

9. Conduit Bodies are supplied with threaded hubs for use with rigid or IMC pipe or as a joint body.

Conduit Bodies can apply in many fields such as Power planet , Petrochemical plant , and regular construction site.
