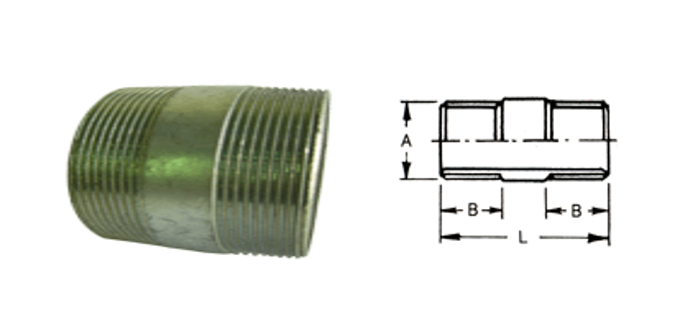

SHORT NIPPLES - CONDUIT FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.


單位:±3mm

規格
Size
(IN)

Steel

表面處理
Standard
Finishes

不銹鋼
Stainless steel

(SUS304.316)

鋁合金
Aluminum Alloy

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

L

B

1/2

NIP 16

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

NIP 16-S

NIP 16-A

21

30

16

3/4

NIP 22

NIP 22-S

NIP 22-A

26

30

13

1

NIP 28

NIP 28-S

NIP 28-A

33

30

13

1 1/4

NIP 36

NIP 36-S

NIP 36-A

42

33

14

1 1/2

NIP 42

NIP 42-S

NIP 42-A

48

33

14

2

NIP 54

NIP 54-S

NIP 54-A

60

35

15

2 1/2

NIP 70

NIP 70-S

NIP 70-A

73

63

23

3

NIP 82

NIP 82-S

NIP 82-A

88

60

23

4

 NIP 104

 NIP 104-S

 NIP 104-A

114

76

25


單位:±3mm


規格
Size
(IN)

Steel

表面處理
Standard
Finishes

不銹鋼
Stainless steel

(SUS304.316)

鋁合金
Aluminum Alloy

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

L

B

1/2

NIP 16-1

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

NIP 16 -1S

NIP 16 -1A

21

30

13

NIP 16-2

NIP 16 -2S

NIP 16 -2A

21

50

13

NIP 16-3

NIP 16 -3S

NIP 16 -3A

21

70

13

3/4

NIP 22-1

NIP 22 -1S

NIP 22 -1A

26

30

13

NIP 22-2

NIP 22 -2S

NIP 22 -2A

26

50

13

NIP 22-3

NIP 22 -3S

NIP 22 -3A

26

70

13

1

NIP 28-1

NIP 28 -1S

NIP 28 -1A

33

30

13

NIP 28-2

NIP 28 -2S

NIP 28 -2A

33

50

13

NIP 28-3

NIP 28 -3S

NIP 28 -3A

33

70

13

1 1/4

NIP 36-1

NIP 36 -1S

NIP 36 -1A

42

50

15

NIP 36-2

NIP 36 -2S

NIP 36 -2A

42

76

15

NIP 36-3

NIP 36 -3S

NIP 36 -3A

42

101

15

1 1/2

NIP 42-1

NIP 42 -1S

NIP 42 -1A

48

50

18

NIP 42-2

NIP 42 -2S

NIP 42 -2A

48

76

18

NIP 42-3

NIP 42 -3S

NIP 42 -3A

48

101

18

2

NIP 54-1

NIP 54 -1S

NIP 54 -1A

60

50

20

NIP 54-2

NIP 54 -2S

NIP 54 -2A

60

76

20

NIP 54-3

NIP 54 -3S

NIP 54 -3A

60

101

20

2 1/2

NIP 70-1

NIP 70 -1S

NIP 70 -1A

73

60

23

NIP 70-2

NIP 70 -2S

NIP 70 -2A

73

101

23

NIP 70-3

NIP 70 -3S

NIP 70 -3A

73

127

23

3

NIP 82-1

NIP 82 -1S

NIP 82 -1A

88

60

25

NIP 82-2

NIP 82 -2S

NIP 82 -2A

88

101

25

NIP 82-3

NIP 82 -3S

NIP 82 -3A

88

127

25

4

NIP 104-1

NIP 104 -1S

NIP 104 -1A

114

90

25

NIP 104-2

NIP 104 -2S

NIP 104 -2A

114

127

25

NIP 104-3

NIP 104 -3S

NIP 104 -3A

114

152

25

(尺寸表僅供參考;實際尺寸以實體為主)
