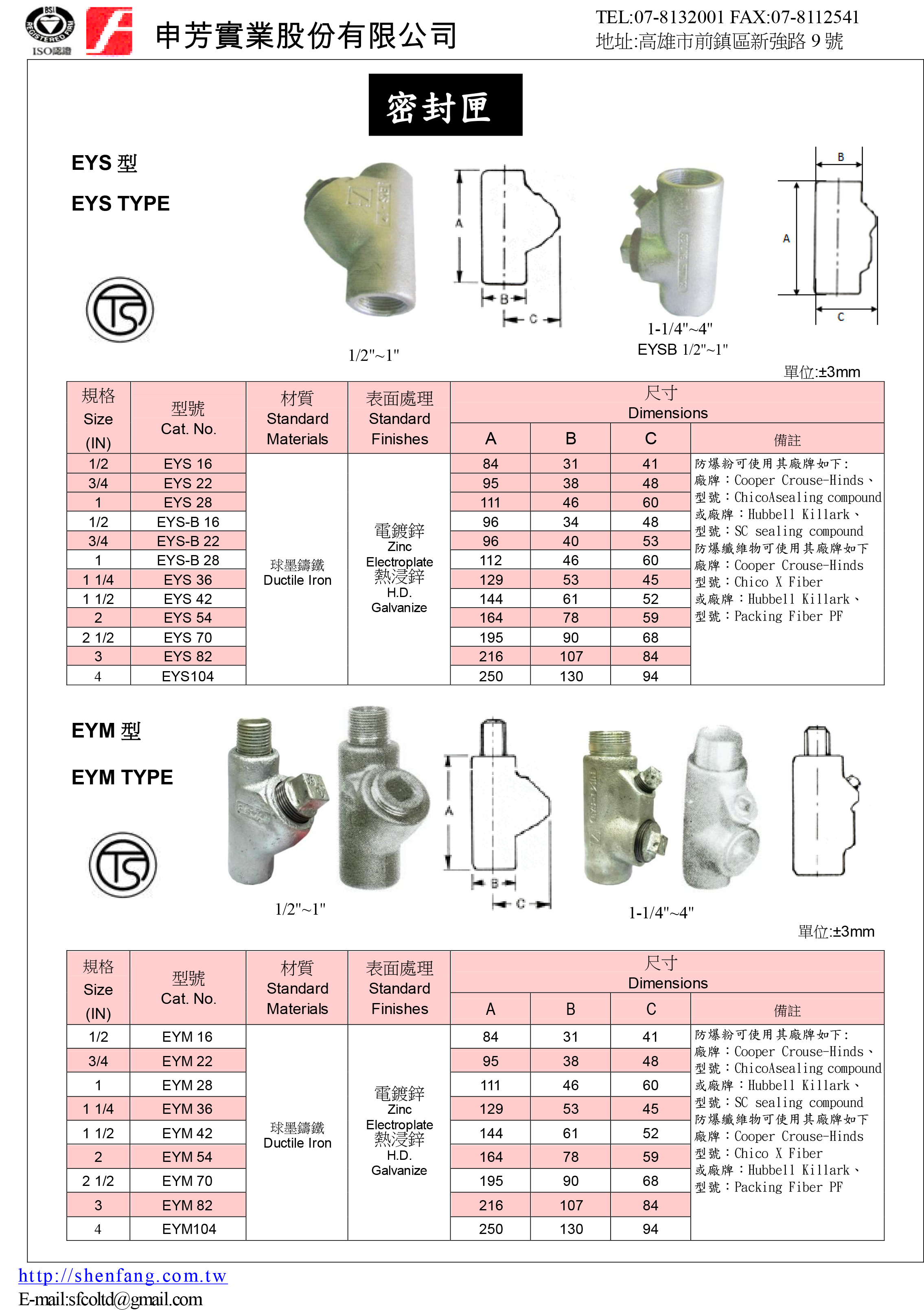

EYS TYPE - SEALING FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.



Conduit sealing fittings are installed in conduit runs to prevent the passage of gases, vapors or flames from one portion of the electrical installation to another through the conduit, limiting any explosion to the enclosure and preventing pre-compression or “pressure piling.”

EYS TYPE - SEALING FITTINGS


TS certificated


Shenfang Conduit fitting has hub size from1/2” to 4”. It is suitable for rigid conduit and Conduit outlet box.Our conduit fitting can apply for construction site or MRT and Power plant project.


規格
Size
(IN)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理
Standard
Finishes

鋁合金
Aluminum Alloy

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

B

C

1/2

EYS 16

EYS 16-M

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

EYS 16-A

84

31

41

3/4

EYS 22

EYS 22-M

EYS 22-A

95

38

48

1

EYS 28

EYS 28-M

EYS 28-A

111

46

60

1 1/4

EYS 36

EYS 36-M

EYS 36-A

129

53

45

1 1/2

EYS 42

EYS 42-M

EYS 42-A

144

61

52

2

EYS 54

EYS 54-M

EYS 54-A

164

78

59

2 1/2

EYS 70

EYS 70-M

EYS 70-A

195

90

68

3

EYS 82

EYS 82-M

EYS 82-A

216

107

84

4

EYS104

EYS104-M

EYS104-A

250

130

94
