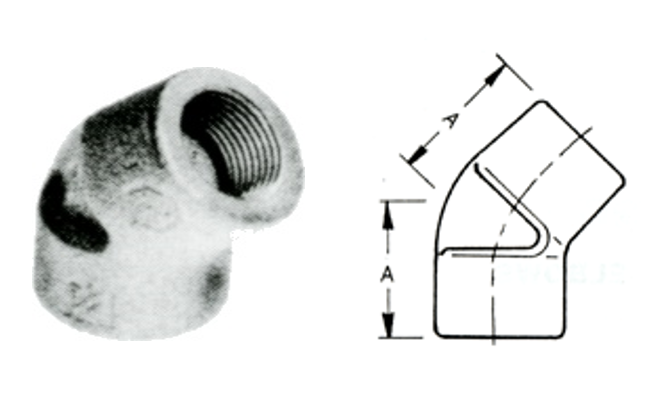

45∘ELBOWS - CONDUIT FITTINGS

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.



單位:±3mm

規格
Size
(IN)

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

表面處理
Standard
Finishes

鋁合金
Aluminum Alloy

尺寸

Dimensions

型號
Cat. No.

型號
Cat. No.

型號
Cat. No.

A

1/2

ELF 16

ELF 16-M

電鍍鋅
Zinc
Electroplate
熱浸鋅
H.D.
Galvanize
達克銹

Dacrotizing

ELF 16-A

30

3/4

ELF 22

ELF 22-M

ELF 22-A

35

1

ELF 28

ELF 28-M

ELF 28-A

42

1 1/4

ELF 36

ELF 36-M

ELF 36-A

45

1 1/2

ELF 42

ELF 42-M

ELF 42-A

49

2

ELF 54

ELF 54-M

ELF 54-A

57

(尺寸表僅供參考;實際尺寸以實體為主)
