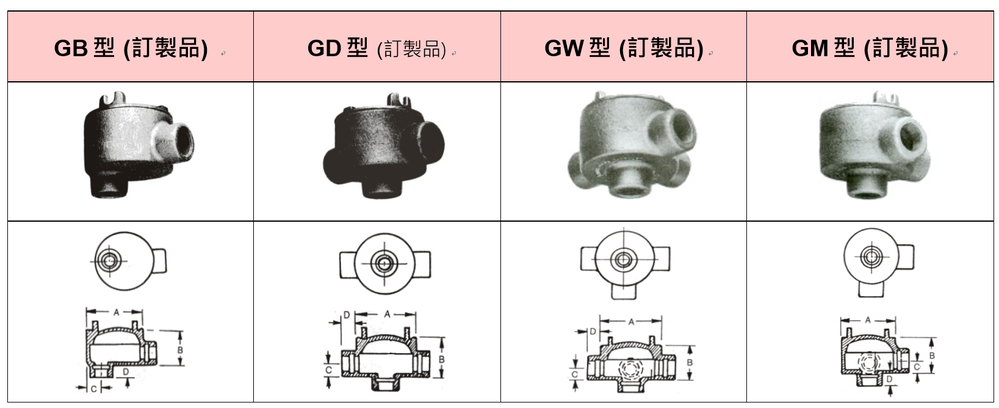

GB, GD, GW, GM TYPE - EXPLOSION PROOF ROUND OUTLET BOXES

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets.
Model : GB、GD、GW、GM

Conduit fittings are used for an electrical conduit system from the overhead service entrance to machinery, and final electrical outlets. Conduit fittings are generally installed by electricians at the site of installation of electrical equipment.


單位:±3mm

規格
Size (IN)

材質

Stainless Steel

表面處理
Standard Finishes

 A

B

C

D

備註

Remarks

1/2

鑄鐵合金
Feraloy Iron

可鍛鑄鐵

Malleable Iron

球墨鑄鐵

Ductile Iron

電鍍鋅
Zinc
Electroplate

熱浸鋅
H.D.
Galvanize

達克銹

Dacrotizing

90

57

18

22

其它材質:

鋁合金
Alluminum Alloy

鑄不銹鋼CF8

Stainless steel

(SUS304,316)

3/4

90

60

18

22

1

90

67

23

22

1 1/4

108

73

30

23

1 1/2

145

106

32

30

2

145

106

35

30



(尺寸表僅供參考;實際尺寸以實體為主)
